300-515 · Question #122
Refer to the exhibit. A customer is experiencing a VPN traffic outage: The VPN connection CustomerLMN between PEA and PEC is down. After debugging, the service provider network engineer found that…
The correct answer is D. PEA(config)#router bgp 100. Under the MP-BGP (vpnv4) session you must signal the route-target extended communities, and under the VRF’s IPv4 address-family you must inject (redistribute) the connected customer subnet into BGP.
Question
Refer to the exhibit. A customer is experiencing a VPN traffic outage: The VPN connection CustomerLMN between PEA and PEC is down. After debugging, the service provider network engineer found that the VRF RD and RT values are correctly configured on PEA and PEC, and MP-BGP peering is up between the PE routers. Which configuration resolves this issue?

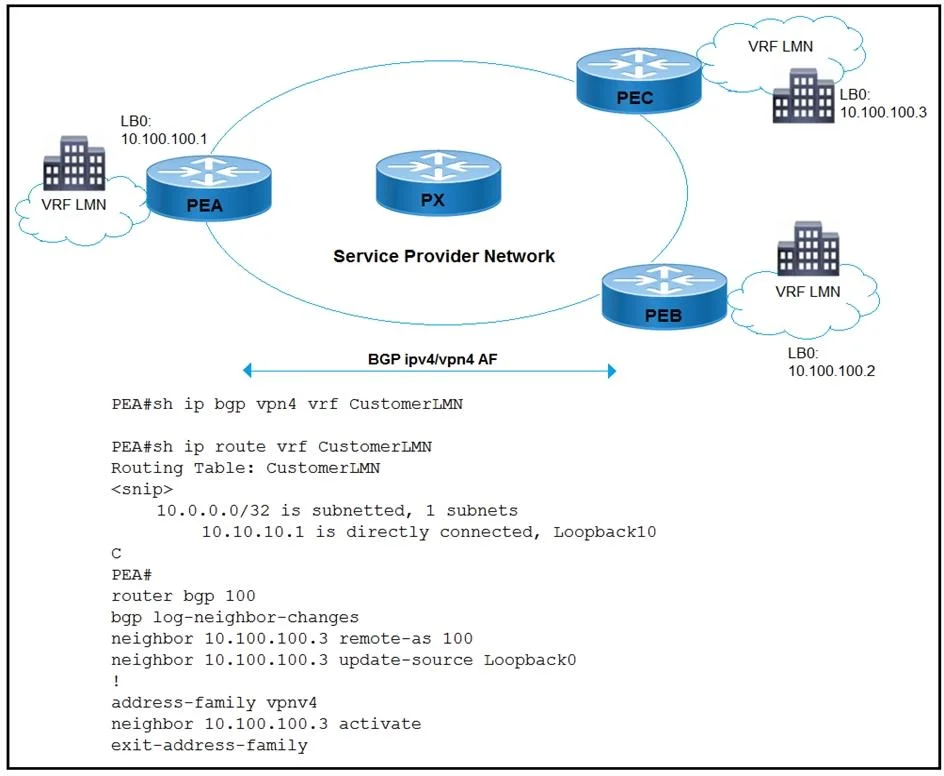

Exhibit
Options
- APEA(config)#router bgp 100
- BPEA(config)#router bgp 100
- CPEA(config)router bgp 100
- DPEA(config)#router bgp 100
How the community answered
(45 responses)- A9% (4)
- B24% (11)
- C4% (2)
- D62% (28)
Explanation
Under the MP-BGP (vpnv4) session you must signal the route-target extended communities, and under the VRF’s IPv4 address-family you must inject (redistribute) the connected customer subnet into BGP.
Topics
Community Discussion
No community discussion yet for this question.
