300-420 · Question #251

Refer to the exhibit. Which method must an architect use to provide connectivity between the mail servers?

The correct answer is B. 6to4. 6to4 is an automatic IPv6-over-IPv4 tunneling mechanism that embeds an IPv4 address in the IPv6 address (2002::/16 prefix) to allow IPv6 islands to communicate across an IPv4 backbone.

Advanced Addressing and Routing Solutions

Question

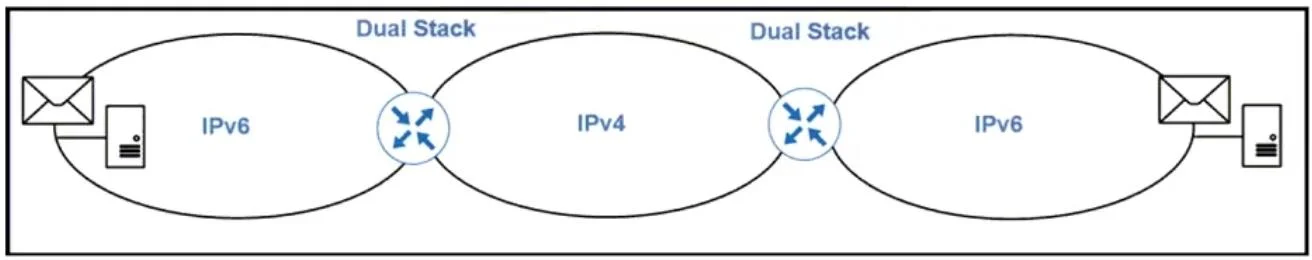

Refer to the exhibit. Which method must an architect use to provide connectivity between the mail servers?

Exhibit

300-420 question #251 exhibit

Options

  • AISATAP
  • B6to4
  • C6rd
  • DIPv4 compatible

How the community answered

(28 responses)
  • A
    7% (2)
  • B
    71% (20)
  • C
    18% (5)
  • D
    4% (1)

Why each option

6to4 is an automatic IPv6-over-IPv4 tunneling mechanism that embeds an IPv4 address in the IPv6 address (2002::/16 prefix) to allow IPv6 islands to communicate across an IPv4 backbone.

AISATAP

ISATAP (Intra-Site Automatic Tunnel Addressing Protocol) is designed to connect individual IPv6 hosts within a single site over an IPv4 intranet, not to interconnect separate IPv6 networks.

B6to4Correct

6to4 uses the 2002::/16 prefix and embeds the router's public IPv4 address in bits 17-48 of the IPv6 address, enabling automatic encapsulation of IPv6 packets in IPv4 protocol 41 headers. This allows separate IPv6 networks - such as mail servers on different IPv6 segments - to communicate across an IPv4 infrastructure without manually configured tunnels between every pair of sites.

C6rd

6rd (IPv6 Rapid Deployment) is a service-provider mechanism that uses ISP-assigned prefixes to deploy IPv6 over an ISP's IPv4 infrastructure, not a general-purpose site-to-site tunneling solution.

DIPv4 compatible

IPv4-compatible IPv6 addresses (::x.x.x.x) are deprecated per RFC 4291 and are not a supported or viable tunneling mechanism in modern networks.

Concept tested: 6to4 automatic tunneling for IPv6 over IPv4

Source: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/ipv6/configuration/xe-3s/ipv6-xe-3s-book/ip6-tunnel.html

Topics

#IPv6 Transition Mechanisms#6to4 Tunneling#IPv6 Connectivity#Network Architecture
