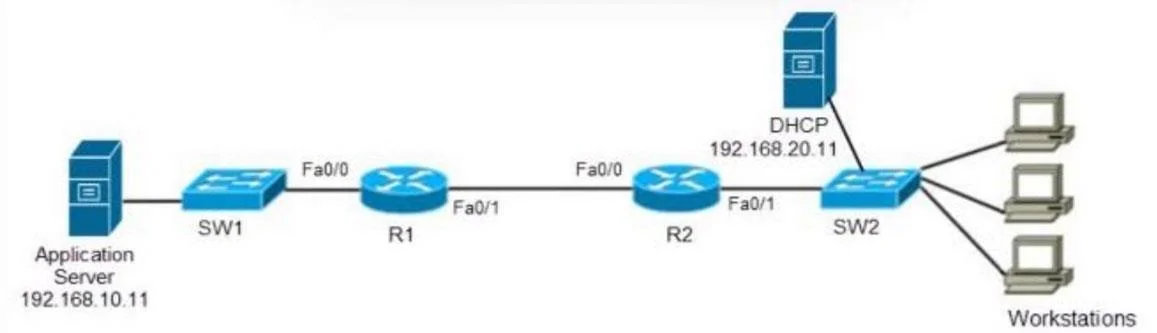

Refer to the exhibit. An architect is designing a network for a customer supporting a Wake-on- LAN application. Which solution must the architect choose?

The correct answer is A. IP directed-broadcasts on R1. In a scenario where the Wake-on-LAN (WOL) server is connected to R1 and the PCs to be powered on are connected to R2, you would still need to enable the "ip directed-broadcast" command on R1. This command is necessary to allow broadcast packets directed to the WOL server to…

Advanced Addressing and Routing Solutions

Question

Exhibit

Options

AIP directed-broadcasts on R1
Bspanning-tree uplinkfast on SW1
Cspanning-tree uplinkfast on SW2
DIP directed-broadcasts on R2

How the community answered

(18 responses)

A
72% (13)
B
6% (1)
C
17% (3)
D
6% (1)

Explanation

In a scenario where the Wake-on-LAN (WOL) server is connected to R1 and the PCs to be powered on are connected to R2, you would still need to enable the "ip directed-broadcast" command on R1. This command is necessary to allow broadcast packets directed to the WOL server to traverse R1 and reach their destination on the R2 network.

Topics

#Wake-on-LAN (WoL)#IP Directed Broadcast#Inter-VLAN Routing#Network Design

Community Discussion

No community discussion yet for this question.
