300-415 · Question #424

Refer to the exhibit. A customer wants to deploy service insertion at site 1, in which traffic from VPN 10 must route to this site through a firewall. A policy must be in place to route VPN 10…

The correct answer is C. policy list site-list Site-1 site-id 1 vpn-list vpn-10 vpn 10 data-policy FW-policy vpn-list vpn-10 sequence 1 match ip-destination 10.1.1.0/24 action accept set nexthop 10.0.0.2 apply-policy site-list Hub-1 data-policy netsvc1-policy. To route VPN 10 traffic from all sites through a firewall at Site 1, a centralized data policy on the vSmart controller should be used to set the firewall's IP as the next-hop.

Policies

Question

Refer to the exhibit. A customer wants to deploy service insertion at site 1, in which traffic from VPN 10 must route to this site through a firewall. A policy must be in place to route VPN 10 traffic from all sites toward this firewall. Which configuration must be on the vSmart controller to meet this requirement?

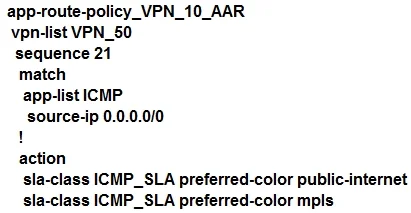

Exhibit

300-415 question #424 exhibit

Options

  • Apolicy lists site-list Site-1 site-id 1 control-policy firewall-service sequence 10 match route vpn 10 action accept set service FW apply-policy site-list device-1 control-policy custom-firewall-service out
  • Bpolicy control-policy FW_Policy sequence 1 match route vpn-list vpn-prefix-list_anyIpv4PrefixList action accept export-to vpn-list VPN10-VPN20 set service netsvc1 default-action reject apply-policy site-list Site1 control-policy FW_Policy out
  • Cpolicy list site-list Site-1 site-id 1 vpn-list vpn-10 vpn 10 data-policy FW-policy vpn-list vpn-10 sequence 1 match ip-destination 10.1.1.0/24 action accept set nexthop 10.0.0.2 apply-policy site-list Hub-1 data-policy netsvc1-policy
  • Dpolicy data-policy_VPN_10_FW vpn-list VPN_10 sequence 1 match ip-destination-ip 10.1.1.0/24 action accept set tloc tloc 10.10.10.1 color mpls encap ipsec default-action drop apply-policy site-list Site1 data-policy_VPN_10_FW from-service

How the community answered

(62 responses)
  • A
    6% (4)
  • B
    3% (2)
  • C
    76% (47)
  • D
    15% (9)

Why each option

To route VPN 10 traffic from all sites through a firewall at Site 1, a centralized data policy on the vSmart controller should be used to set the firewall's IP as the next-hop.

Apolicy lists site-list Site-1 site-id 1 control-policy firewall-service sequence 10 match route vpn 10 action accept set service FW apply-policy site-list device-1 control-policy custom-firewall-service out

This is a control policy, which primarily manipulates routes advertised in OMP, not specific data plane flows by setting a next-hop IP for service insertion.

Bpolicy control-policy FW_Policy sequence 1 match route vpn-list vpn-prefix-list_anyIpv4PrefixList action accept export-to vpn-list VPN10-VPN20 set service netsvc1 default-action reject apply-policy site-list Site1 control-policy FW_Policy out

This is a control policy that includes `export-to vpn-list`, indicating route leaking between VPNs, and uses `set service` which is generally for control-plane service insertion, not specific data-plane next-hop steering for a firewall.

Cpolicy list site-list Site-1 site-id 1 vpn-list vpn-10 vpn 10 data-policy FW-policy vpn-list vpn-10 sequence 1 match ip-destination 10.1.1.0/24 action accept set nexthop 10.0.0.2 apply-policy site-list Hub-1 data-policy netsvc1-policyCorrect

This configuration defines a centralized data policy (`FW-policy`) on the vSmart controller, matching VPN 10 traffic destined for `10.1.1.0/24`. It then redirects this traffic to the firewall's IP address (`10.0.0.2`) by setting it as the `nexthop`. This policy, applied to `Site-1`, ensures that relevant traffic from all sites is steered towards the firewall at Site 1 for inspection.

Dpolicy data-policy_VPN_10_FW vpn-list VPN_10 sequence 1 match ip-destination-ip 10.1.1.0/24 action accept set tloc tloc 10.10.10.1 color mpls encap ipsec default-action drop apply-policy site-list Site1 data-policy_VPN_10_FW from-service

This is a data policy using `set tloc` action, which steers traffic to a specific transport location (WAN Edge TLOC), rather than directly to the firewall's IP address (nexthop) for a local service insertion scenario within a VPN.

Concept tested: Cisco SD-WAN centralized data policy for service chaining with next-hop

Source: https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/sdwan-xe-gs-book/c_centralized_data_policy.html

Topics

#SD-WAN Policies#Service Insertion#Data Policy#vSmart Configuration
