300-415 · Question #418
Refer to the exhibit. A customer wants to deploy service insertion at HQ in which traffic from VPN 1 must route to HQ from both sites to go through the firewall. No route leaking will be in place…
The correct answer is B. vpn 1 service FW address 10.0.0.2 interface ge0/2.1 description ""vpn 1"" ip address 10.0.0.1/28 no shutdown. To deploy service insertion at HQ for VPN 1 traffic through a firewall without route leaking, the configuration must define the firewall as a service directly within VPN 1.
Question

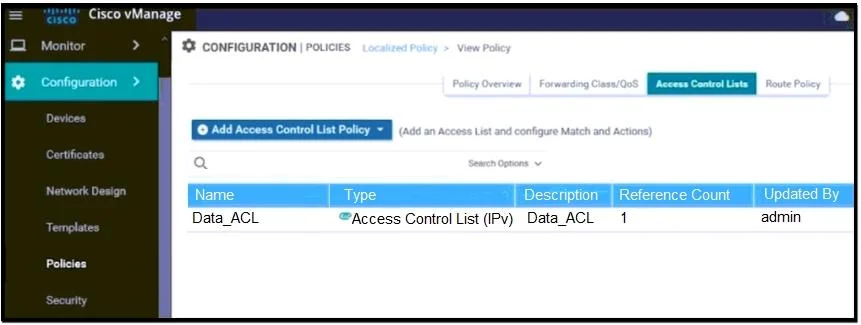

Exhibit
Options
- Apolicy lists site-list device-1 site-id 1 control-policy firewall-service sequence 10 match route vpn 1 action accept set service FW ! apply-policy site-list device-1 control-policy firewall-service out
- Bvpn 1 service FW address 10.0.0.2 interface ge0/2.1 description ""vpn 1"" ip address 10.0.0.1/28 no shutdown
- Cvpn 1 service FW address 10.0.0.2 interface ge0/3.100 description ""vpn 11 FW Inside Interface"" ip address 1.1.1.1/29 no shutdown vpn 12 interface ge0/3.101 description ""vpn 12 FW Outside Interface"" ip address 2.2.2.1/29 no shutdown
- Dvpn 1 service FW address 10.0.0.2 interface ge0/3.100 description ""vpn 1 FW Inside Interface"" ip address 1.1.1.1/28 no shutdown interface ge0/3.101 description ""vpn 1 FW Outside Interface"" ip address 2.2.2.1/29 no shutdown
How the community answered
(46 responses)- A11% (5)
- B80% (37)
- C2% (1)
- D7% (3)
Why each option
To deploy service insertion at HQ for VPN 1 traffic through a firewall without route leaking, the configuration must define the firewall as a service directly within VPN 1.
This is a control policy snippet configured on the vSmart controller, which primarily manipulates routes and TLOCs, not the local device configuration for defining a service insertion point within a VPN.
This configuration directly defines a service named 'FW' (firewall) within `vpn 1` and assigns it an IP address (10.0.0.2). This method, known as service insertion or service chaining, allows traffic from VPN 1 to be redirected to the specified firewall device, which is logically part of VPN 1, without requiring complex route leaking between different VPNs.
This configuration involves multiple interfaces and potentially multiple VPNs (vpn 11 and vpn 12), which would typically require route leaking between them to direct traffic through a firewall, contradicting the 'No route leaking' requirement.
This configuration attempts to define two interfaces within vpn 1 and assigns public IP addresses (1.1.1.1 and 2.2.2.1) which might be more complex than needed for simple service insertion and could imply route leaking if these IPs are on different segments.
Concept tested: Cisco SD-WAN local service insertion configuration
Source: https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/sdwan-xe-gs-book/sdwan-xe-gs-book_chapter_01101.html#concept_F8D6222E58C349C2930219662C923B06
