300-415 · Question #354

An engineer is modifying an existing data policy for VPN 115 to meet these additional requirements: - When browsing government websites, the traffic must use direct internet access. - The source…

The correct answer is C. sequence 15 match destination-data-prefix-list GOVERNMENT-WEBSITES ! action accept set local-tloc-list color biz-internet. To route government website traffic via Direct Internet Access using a specific TLOC, the policy sequence must be inserted before competing sequences and use 'set local-tloc-list color biz-internet' to pin traffic to the correct transport.

Policies

Question

An engineer is modifying an existing data policy for VPN 115 to meet these additional requirements: - When browsing government websites, the traffic must use direct internet access. - The source address of the traffic leaving the site toward the government websites must be set to an IP range associated with the country itself, a particular TLOC. The policy configuration is as follows: vpn 0 interface ge0/0.100 ip address 198.51.100.2/30 nat ! tunnel-interface encapsulation ipsec color biz-internet mtu 1496 no shutdown ! interface ge0/1.10 ip address 10.254.254.2/30 ! tunnel-interface encapsulation ipsec color private1 mtu 1496 no shutdown ! ip route 0.0.0.0/0 198.51.100.1 ip route 0.0.0.0/0 10.254.254.1 ! data-policy DIA vpn-list VPN-115 sequence 10 match destination-data-prefix-list INTERNAL-NETWORKS ! action accept sequence 20 match destination-ip 0.0.0.0/0 ! action accept nat use-vpn 0 ! ! default-action accept

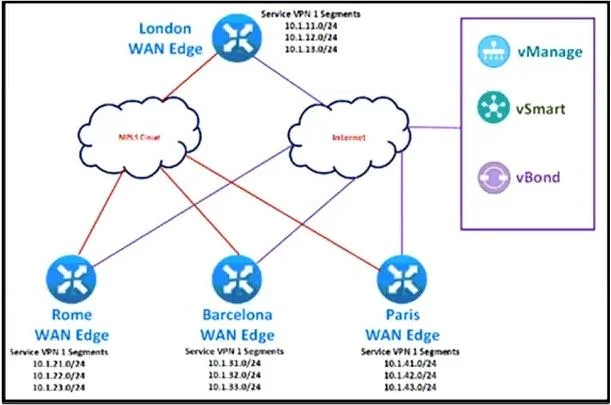

Exhibit

300-415 question #354 exhibit

Options

  • Asequence 25 match destination-data-prefix-list GOVERNMENT-WEBSITES ! action accept nat use-vpn 0
  • Bsequence 30 match destination-data-prefix-list GOVERNMENT-WEBSITES ! action accept set local-tloc-list color biz-internet
  • Csequence 15 match destination-data-prefix-list GOVERNMENT-WEBSITES ! action accept set local-tloc-list color biz-internet
  • Dsequence 15 match source-data-prefix-list GOVERNMENT-WEBSITES ! action accept set local-tloc-list color private1

How the community answered

(33 responses)
  • A
    12% (4)
  • B
    9% (3)
  • C
    76% (25)
  • D
    3% (1)

Why each option

To route government website traffic via Direct Internet Access using a specific TLOC, the policy sequence must be inserted before competing sequences and use 'set local-tloc-list color biz-internet' to pin traffic to the correct transport.

Asequence 25 match destination-data-prefix-list GOVERNMENT-WEBSITES ! action accept nat use-vpn 0

Using 'nat use-vpn 0' sends traffic to VPN 0 for NAT but does not pin it to a specific TLOC color, so the source IP cannot be guaranteed to originate from the biz-internet interface as required.

Bsequence 30 match destination-data-prefix-list GOVERNMENT-WEBSITES ! action accept set local-tloc-list color biz-internet

Sequence 30 is placed too late in the policy and government website traffic may already be matched and handled by an earlier sequence, making this sequence ineffective.

Csequence 15 match destination-data-prefix-list GOVERNMENT-WEBSITES ! action accept set local-tloc-list color biz-internetCorrect

Sequence 15 is inserted before any later default sequences, and the action 'set local-tloc-list color biz-internet' forces traffic out the biz-internet interface whose source IP corresponds to the required country-specific IP range. This satisfies both requirements - direct internet access for government sites and using the biz-internet TLOC for source IP identity.

Dsequence 15 match source-data-prefix-list GOVERNMENT-WEBSITES ! action accept set local-tloc-list color private1

Matching on 'source-data-prefix-list GOVERNMENT-WEBSITES' is incorrect because government websites are the destination, not the source; this match would target traffic originating from government IP ranges rather than traffic destined to them.

Concept tested: Data policy sequence ordering and TLOC selection for DIA

Source: https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/policies/ios-xe-17/policies-book-xe/centralized-policy.html

Topics

#SD-WAN Data Policy#TLOC#Direct Internet Access#Policy Sequencing
