300-365 · Question #148

An engineer has deployed a WLAN in a high-density auditorium and expects the number of clients to grow. Which WLC configuration can be used increase the IP space without any service disruptions?

The correct answer is B. interface group. Interface groups pool multiple dynamic interfaces under a single WLAN so additional subnets can be added to expand IP space without modifying or disrupting the existing WLAN service.

Wireless Deployment

Question

An engineer has deployed a WLAN in a high-density auditorium and expects the number of clients to grow. Which WLC configuration can be used increase the IP space without any service disruptions?

Exhibit

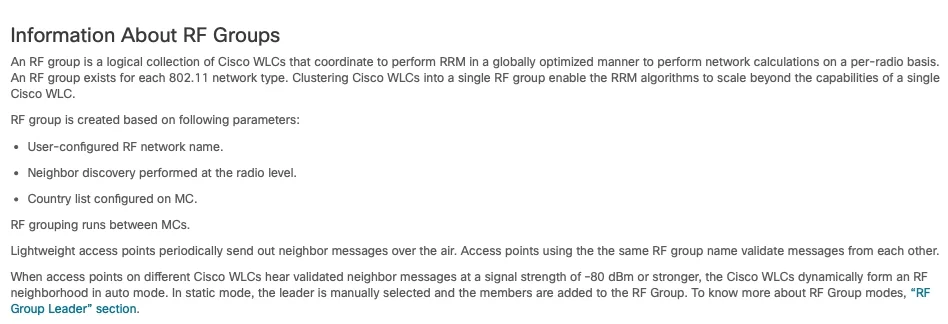

300-365 question #148 exhibit

Options

  • ARF group
  • Binterface group
  • Cdynamic interface
  • DAP group

How the community answered

(44 responses)
  • A
    2% (1)
  • B
    84% (37)
  • C
    9% (4)
  • D
    5% (2)

Why each option

Interface groups pool multiple dynamic interfaces under a single WLAN so additional subnets can be added to expand IP space without modifying or disrupting the existing WLAN service.

ARF group

RF groups manage radio resource coordination between WLCs and have no effect on DHCP scope size or the number of available IP addresses.

Binterface groupCorrect

An interface group associates multiple dynamic interfaces, each backed by its own DHCP scope, with a single WLAN. A new dynamic interface and DHCP pool can be created and added to the existing interface group without taking the WLAN offline or affecting connected clients. This makes interface groups the correct tool for non-disruptively scaling IP capacity in high-density environments.

Cdynamic interface

A single dynamic interface is bound to one VLAN and one DHCP scope; replacing or resizing it requires reconfiguring the WLAN, which causes a service disruption.

DAP group

AP groups determine which WLANs are advertised by which APs and do not influence DHCP pool capacity or IP address availability.

Concept tested: Cisco WLC interface groups for non-disruptive IP space expansion

Source: https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-10/config-guide/b_cg810/configuring_interfaces.html

Topics

#interface groups#high-density#IP addressing#VLAN expansion
