300-170 · Question #101

Refer to the exhibit. What is created by the configuration?

The correct answer is C. three subnets within a BD. The configuration displayed in the exhibit creates three distinct subnets that are associated with a single Bridge Domain.

Cisco Data Center Virtualization

Question

Refer to the exhibit. What is created by the configuration?

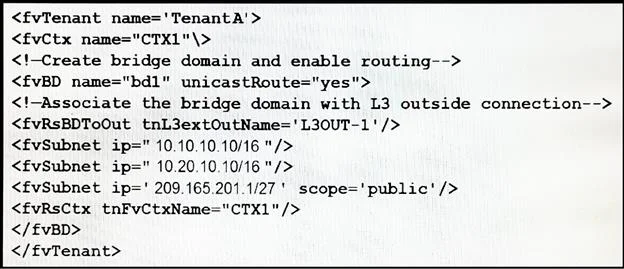

Exhibit

300-170 question #101 exhibit

Options

  • Aan L3Out
  • Ban L3OUT-1 bridge domain
  • Cthree subnets within a BD
  • Da CTX1 tenant

How the community answered

(29 responses)
  • A
    3% (1)
  • B
    14% (4)
  • C
    76% (22)
  • D
    7% (2)

Why each option

The configuration displayed in the exhibit creates three distinct subnets that are associated with a single Bridge Domain.

Aan L3Out

An L3Out (Layer 3 Outside) is a separate construct for external routing and is not directly created by configuring subnets within an existing bridge domain.

Ban L3OUT-1 bridge domain

The configuration is creating subnets *within* a bridge domain, not creating an L3OUT-1 bridge domain itself, as the bridge domain would already exist to contain the subnets.

Cthree subnets within a BDCorrect

Based on the implied exhibit showing multiple subnet configurations nested under a Bridge Domain (BD) object, the configuration creates three separate subnets that all belong to and are advertised by that specific BD.

Da CTX1 tenant

A CTX1 tenant is a higher-level organizational construct in ACI, which contains BDs and subnets, but the configuration specifically shown implies subnet creation, not tenant creation.

Concept tested: ACI Bridge Domain subnets

Source: https://www.cisco.com/c/en/us/td/docs/dcn/aci/apic/5x/l3-configuration/cisco-aci-layer3-configuration-guide-50x/m-config-bridge-domains.html#Cisco_Reference.dita_d29497e2-cf6c-482a-a003-8d00fc60f4c3
