300-070 · Question #176
Refer to the exhibit. Which conference resource is Conference 2 using assuming the MRGL has just been reset and all 6 conferences have become active?
The correct answer is B. HW_CFB_2. This question references a Cisco CUCM Media Resource Group List (MRGL) exhibit. In CUCM, when a Media Resource Group List is reset and resources are allocated, the system assigns conferences to resources in order based on the MRGL priority. Hardware conference bridges (HW_CFB) ar
Question
Refer to the exhibit. Which conference resource is Conference 2 using assuming the MRGL has just been reset and all 6 conferences have become active?

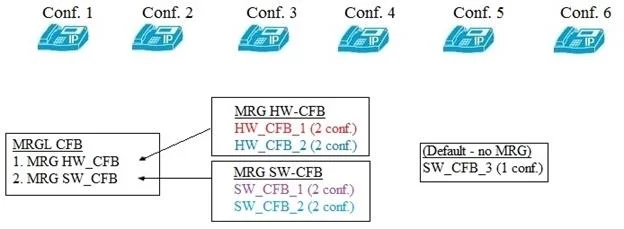

Exhibit
Options
- ASW_CFB_3
- BHW_CFB_2
- CHW_CFB_1
- DSW_CFB_2
- ESW_CFB_1
How the community answered
(45 responses)- A9% (4)
- B62% (28)
- C2% (1)
- D22% (10)
- E4% (2)
Explanation
This question references a Cisco CUCM Media Resource Group List (MRGL) exhibit. In CUCM, when a Media Resource Group List is reset and resources are allocated, the system assigns conferences to resources in order based on the MRGL priority. Hardware conference bridges (HW_CFB) are prioritized over software conference bridges (SW_CFB) when listed first in the MRGL. With all 6 conferences becoming active simultaneously after the MRGL reset, Conference 2 would be assigned to the second available hardware bridge, HW_CFB_2, because Conference 1 would have already claimed HW_CFB_1. Hardware resources are exhausted first before the system falls back to software resources.
Topics
Community Discussion
No community discussion yet for this question.
