210-060 · Question #2
Use the router console to view the configuration and answer the question. When a call is placed from the Branch Router phone to the PSTN number of 914085551212, the call is failing. What dial-peer…
The correct answer is B. dial-peer voice 9 pots F. the port assignment is incorrect in the dial-peer. The dial 9, 910, and 9001 dial peer configurations are shown below: Here we see that dial peer 9 and 910 match the same destination pattern, but 9 will be used first. However, the port used should be 0/0/0:15 not 0/0/0:12.
Question

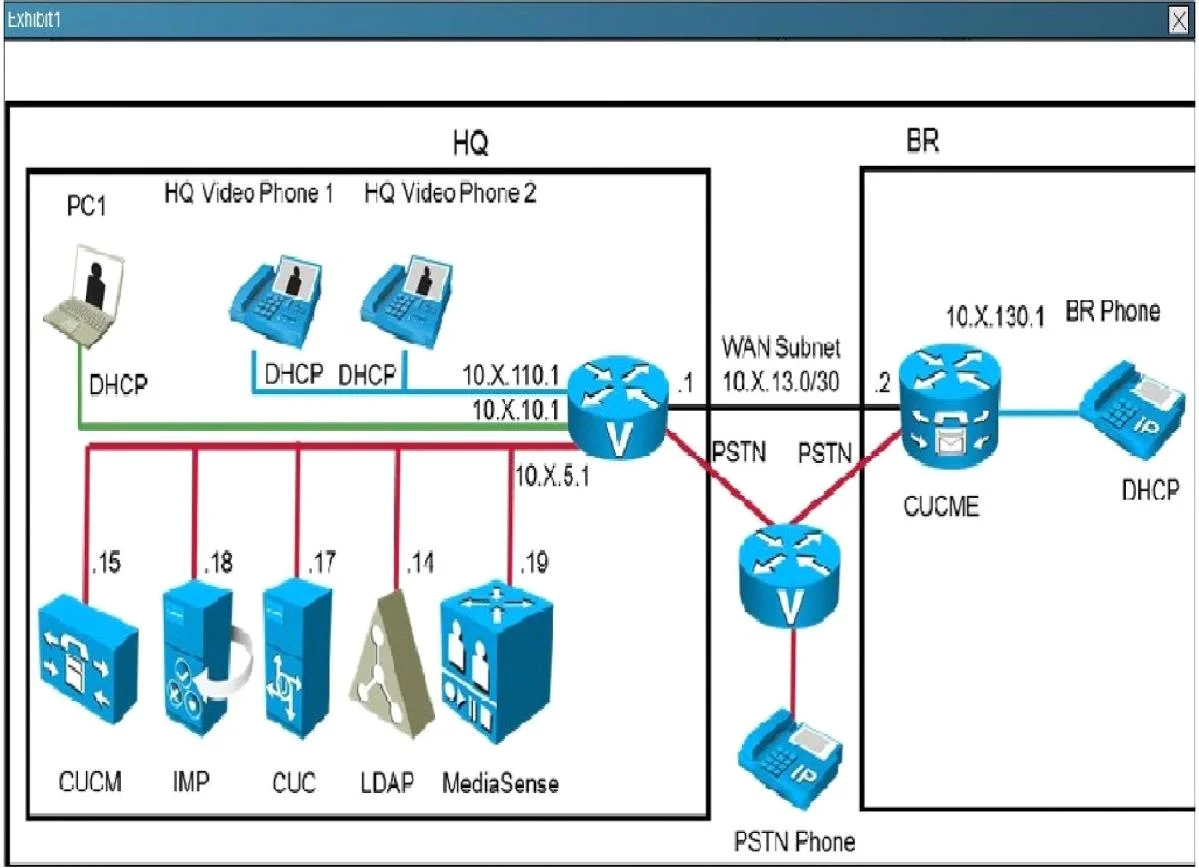

Use the router console to view the configuration and answer the question. When a call is placed from the Branch Router phone to the PSTN number of 914085551212, the call is failing. What dial-peer is supposed to be used and why is the call failing? Select 2 (two)
Exhibits
Options
- Adial-peer voice 910 pots
- Bdial-peer voice 9 pots
- Cdial-peer voice 9001 voip
- Ddestination pattern is incorrect
- Eprefix is missing from the dial-peer
- Fthe port assignment is incorrect in the dial-peer
- Gthe port number is missing in the dial-peer
How the community answered
(53 responses)- A2% (1)
- B55% (29)
- C23% (12)
- D6% (3)
- E2% (1)
- G13% (7)
Explanation

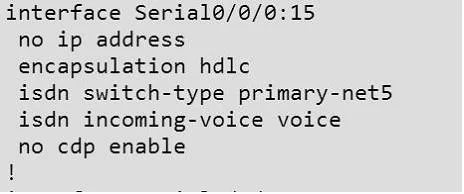

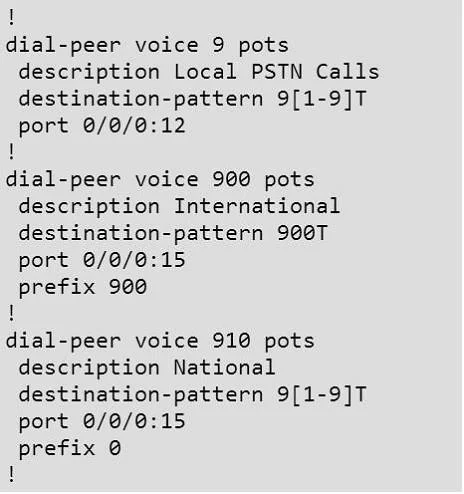

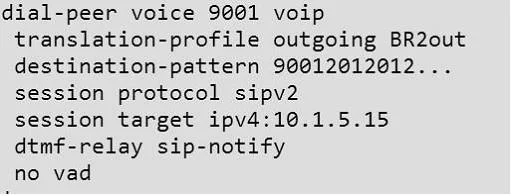

The dial 9, 910, and 9001 dial peer configurations are shown below: Here we see that dial peer 9 and 910 match the same destination pattern, but 9 will be used first. However, the port used should be 0/0/0:15 not 0/0/0:12.
