200-301 · Question #982

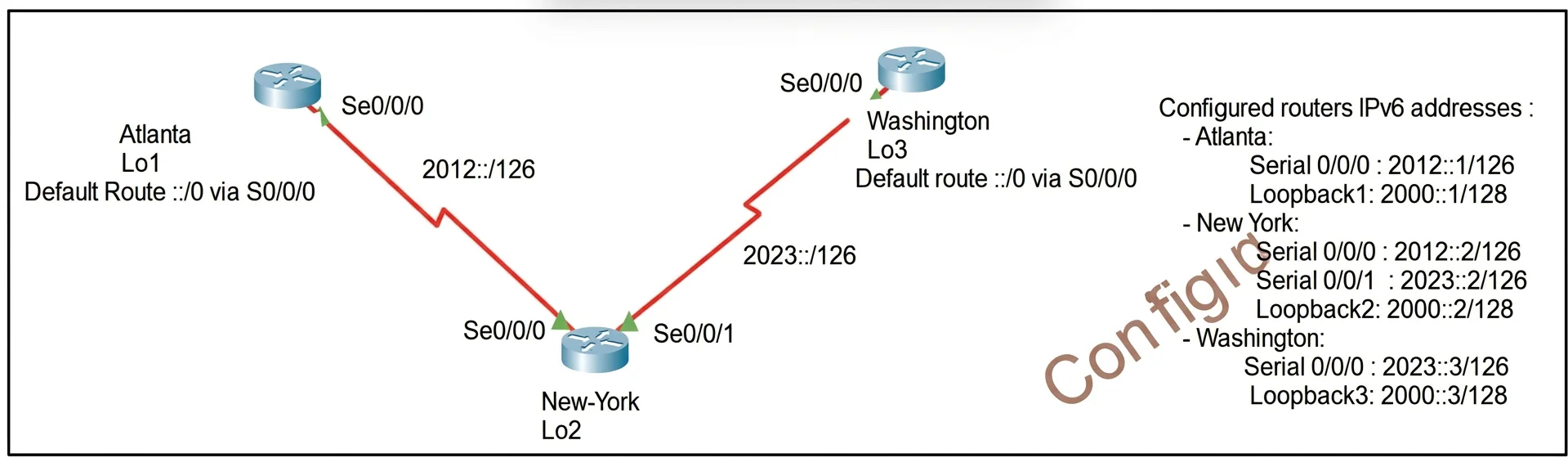

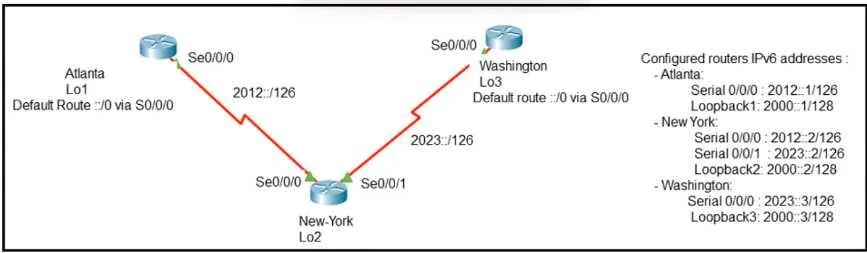

Refer to the exhibit. The loopback1 interface of the Atlanta router must reach the lookback3 interface of the Washington router.
The correct answer is B. ipv6 route 2000::1/128 2012::1 D. ipv6 route 2000::3/128 2023::3. The question requires configuring static IPv6 routes on the Atlanta router to ensure reachability to specific loopback interfaces on the Washington router.
Question
Exhibits
Options
- Aipv6 route 2000::1/128 2012::2
- Bipv6 route 2000::1/128 2012::1
- Cipv6 route 2000:3/123 s0/0/0
- Dipv6 route 2000::3/128 2023::3
- Eipv6 route 2000::1/128 s0/0/1
How the community answered
(25 responses)- A12% (3)
- B64% (16)
- C20% (5)
- E4% (1)
Why each option
The question requires configuring static IPv6 routes on the Atlanta router to ensure reachability to specific loopback interfaces on the Washington router.
The destination network 2000::1/128 is valid, but 2012::2 would be the IP address of an interface on the Atlanta router itself, not a valid next-hop IP for reaching a remote destination.
This configuration establishes a static IPv6 route on the Atlanta router for the destination network 2000::1/128 (likely Washington's Loopback1 interface) using 2012::1 as the next-hop IPv6 address, which must be an IP on a directly connected interface of the Washington router.
The destination 2000:3/123 is an incorrect IPv6 address format and prefix length for a /128 loopback address, and s0/0/0 alone is an outgoing interface, which is generally not preferred for static routes to a specific /128 host unless it's a point-to-point link.
This configuration establishes a static IPv6 route on the Atlanta router for the destination network 2000::3/128 (Washington's Loopback3 interface) using 2023::3 as the next-hop IPv6 address, which must be an IP on a directly connected interface of the Washington router.
The destination network 2000::1/128 is valid, but s0/0/1 is an outgoing interface and should be combined with a next-hop IP for reliability and proper routing table population, especially if it's not a point-to-point link.
Concept tested: Static IPv6 routing configuration
