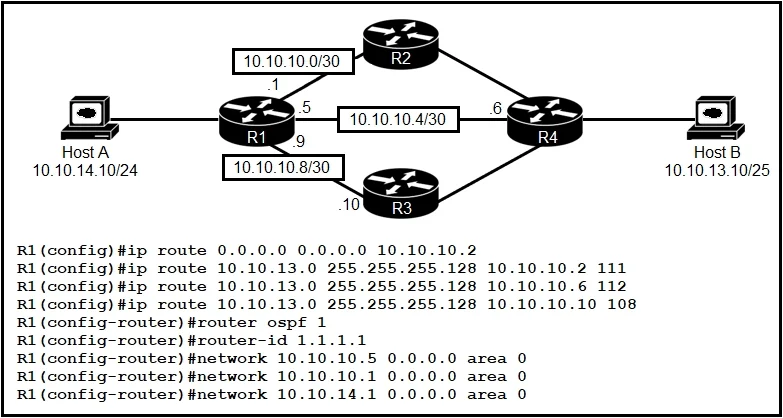

Refer to the exhibit. R1 has just received a packet from host A that is destined to host B. Which route in the routing table is used by R1 to reach host B?

The correct answer is B. 10.10.13.0/25 [108/0] via 10.10.10.10. OSFP routing, indicated by area 0 routing command, has AD of 110. There is a floating static route configured with 108 AD. As the configured static route's AD is lower (108) than the OSPF's default AD (110) it will route the traffic via 10.10.10.10 because it has the lowest AD an

Submitted by andres_qro· Mar 5, 2026IP Connectivity

Question

Exhibits

Options

A10.10.13.0/25 [1/0] via 10.10.10.2
B10.10.13.0/25 [108/0] via 10.10.10.10
C10.10.13.0/25 [110/2] via 10.10.10.6
D10.10.13.0/25 [110/2] via 10.10.10.2

How the community answered

(27 responses)

A
15% (4)
B
41% (11)
C
33% (9)
D
11% (3)

Explanation

OSFP routing, indicated by area 0 routing command, has AD of 110. There is a floating static route configured with 108 AD. As the configured static route's AD is lower (108) than the OSPF's default AD (110) it will route the traffic via 10.10.10.10 because it has the lowest AD and thus will be put into the routing table.

Topics

#administrative distance#route selection#routing table#longest prefix match
