200-301 · Question #677
Refer to the exhibit. Routers R1 and R2 have been configured with their respective LAN interfaces. The two circuits are operational and reachable across WAN. Which command set establishes failover red
The correct answer is D. R1(config)#ip route 0.0.0.0 0.0.0.0 10.10.10.6 2. To establish failover redundancy, a floating static route is configured on R1, pointing the default route through the secondary next-hop (10.10.10.6) with a higher administrative distance of 2.
Question

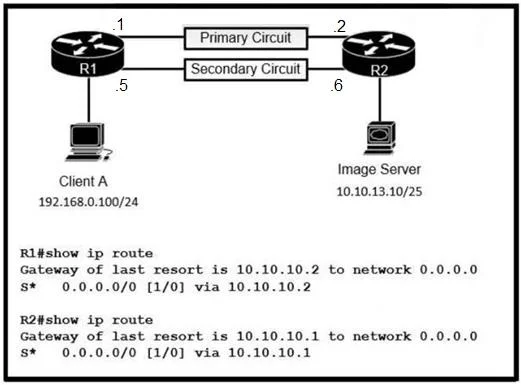

Refer to the exhibit. Routers R1 and R2 have been configured with their respective LAN interfaces. The two circuits are operational and reachable across WAN. Which command set establishes failover redundancy if the primary circuit goes down?
Exhibits
Options
- AR1(config)#ip route 0.0.0.0 0.0.0.0 10.10.10.6
- BR1(config)#ip route 10.10.13.10 255.255.255.255 10.10.10.2
- CR1(config)#ip route 10.10.13.10 255.255.255.255 10.10.10.6
- DR1(config)#ip route 0.0.0.0 0.0.0.0 10.10.10.6 2
How the community answered
(45 responses)- A2% (1)
- B13% (6)
- C7% (3)
- D78% (35)
Why each option
To establish failover redundancy, a floating static route is configured on R1, pointing the default route through the secondary next-hop (10.10.10.6) with a higher administrative distance of 2.
This command configures a default static route with the default administrative distance of 1, which would make it the primary route, not a failover route with higher administrative distance.
This command configures a specific host route to 10.10.13.10 via next-hop 10.10.10.2, which is not a default route for all traffic and does not include an administrative distance to enable failover redundancy for general internet access.
This command also configures a specific host route to 10.10.13.10 via next-hop 10.10.10.6, similar to option B, it's not a default route for all traffic and lacks the administrative distance for failover.
This command configures a default static route (0.0.0.0 0.0.0.0) on R1, directing all traffic to the next-hop IP address 10.10.10.6. The '2' at the end sets the administrative distance of this route to 2, ensuring it only becomes active if a primary route with a lower administrative distance fails, thus providing failover redundancy.
Concept tested: Floating static routes for redundancy
Source: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_static/configuration/xe-16/irs-xe-16-book/irs-static-route-cfg.html
