200-301 · Question #297
200-301 Question #297: Real Exam Question with Answer & Explanation
The correct answer is B: S2. Lower priority means it is preferred compared to a higher. If there is a tie in priority then the lowest MAC address will determine which bridge becomes the root. Because S2 has the lowest MAC address, S2 becomes the root bridge.
Submitted by tarun92· Mar 5, 2026Network Access
Question

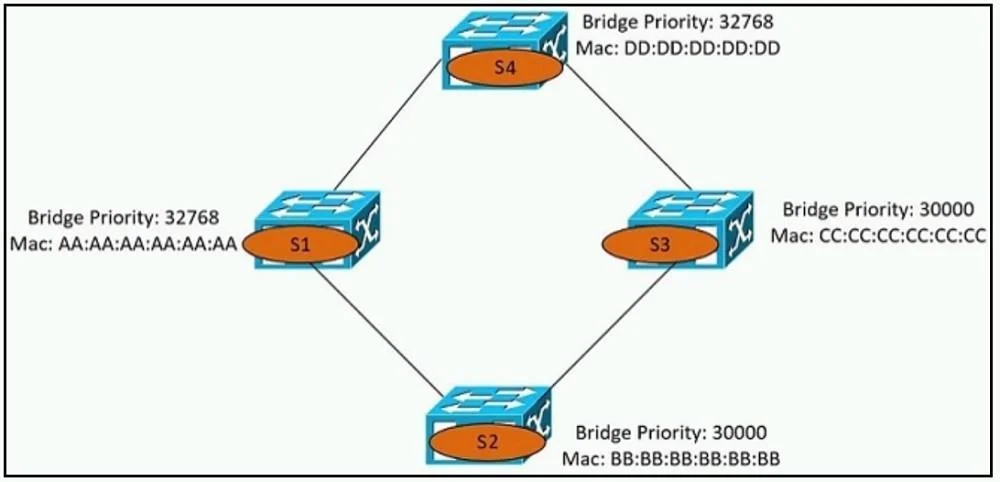

Refer to the exhibit. Which switch becomes the root bridge?
Options
- AS1
- BS2
- CS3
- DS4
Explanation
Lower priority means it is preferred compared to a higher. If there is a tie in priority then the lowest MAC address will determine which bridge becomes the root. Because S2 has the lowest MAC address, S2 becomes the root bridge.
Topics
#STP#Root Bridge Election
Community Discussion
No community discussion yet for this question.
