200-301 · Question #279
Refer to the exhibit. A network administrator assumes a task to complete the connectivity between PC A and the File Server. Switch A and Switch B have been partially configured with VLAN 10, 11, 12, a
The correct answer is B. Add VLAN 13 to the trunk links on Switch A and Switch B for VLAN propagation. They are not on different subnets. Subnet 192.168.0.0 /23 has 2^9 = 512 hosts, which spans an IP range of 192.168.0.0 - 192.168.1.255. Addresses 192.168.0.10 and 192.168.1.20 are on the same range and their respective interfaces are on the same VLAN. The only problem here is that
Question

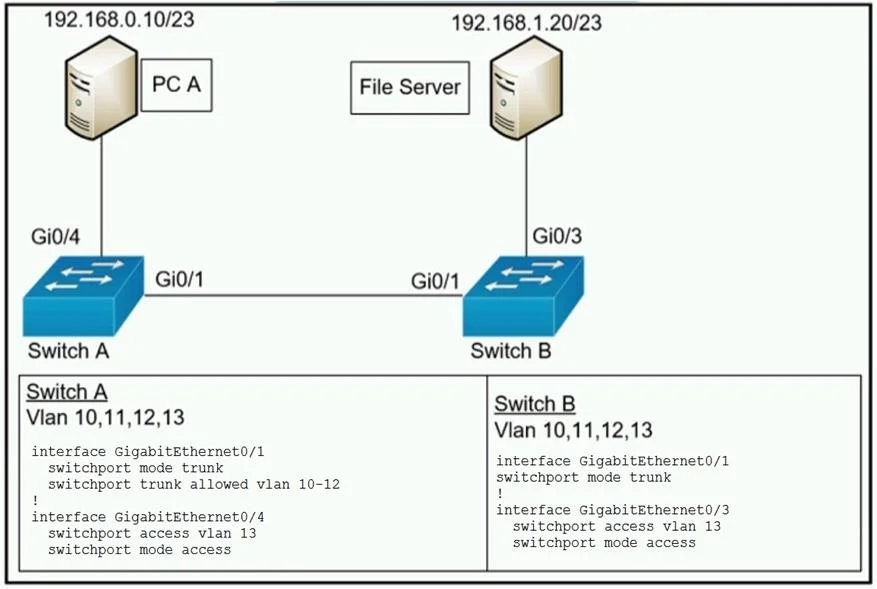

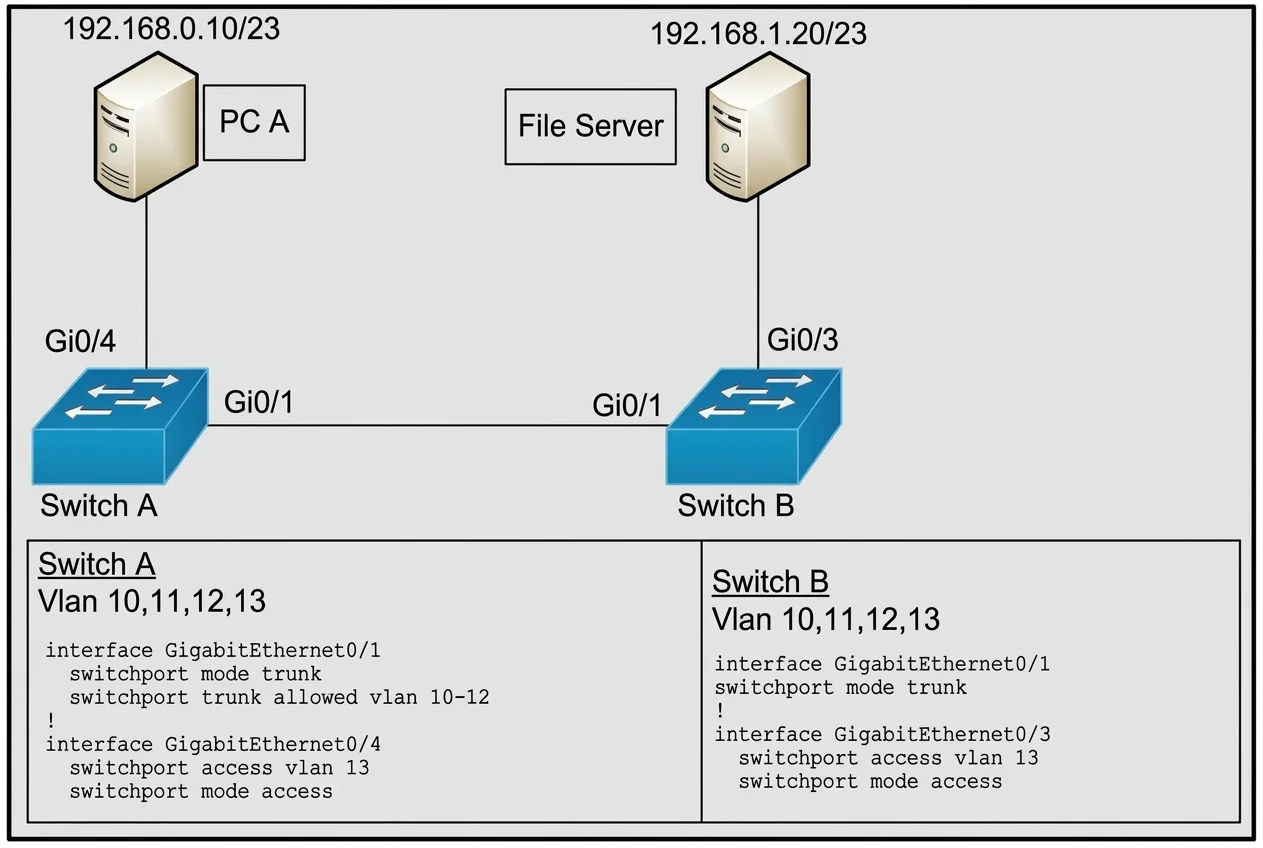

Refer to the exhibit. A network administrator assumes a task to complete the connectivity between PC A and the File Server. Switch A and Switch B have been partially configured with VLAN 10, 11, 12, and 13. What is the next step in the configuration?
Exhibits
Options
- AAdd PC A to VLAN 10 and the File Server to VLAN 11 fa VLAN segmentation
- BAdd VLAN 13 to the trunk links on Switch A and Switch B for VLAN propagation
- CAdd a router on a stick between Switch A and Switch B allowing for Inter-VLAN routing.
- DAdd PC A to the same subnet as the Fie Server allowing for intra-VLAN communication.
How the community answered
(55 responses)- A4% (2)
- B76% (42)
- C7% (4)
- D13% (7)
Explanation
They are not on different subnets. Subnet 192.168.0.0 /23 has 2^9 = 512 hosts, which spans an IP range of 192.168.0.0 - 192.168.1.255. Addresses 192.168.0.10 and 192.168.1.20 are on the same range and their respective interfaces are on the same VLAN. The only problem here is that the trunk link on Switch A doesn't allow VLAN 13, so "B" is correct.
