200-301 · Question #178

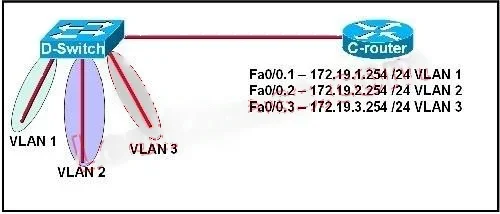

Refer to the exhibit. C-router is to be used as a "router-on-a-stick" to route between the VLANs. All the interfaces have been properly configured and IP routing is operational. The hosts in the VLANs
The correct answer is D. No further routing configuration is required.. Since all the same router (C-router) is the default gateway for all three VLANs, all traffic destined to a different VLAN will be sent to the C-router. The C-router will have knowledge of all three networks since they will appear as directly connected in the routing table. Since
Question
Exhibits
Options
- AThese commands need to be added to the configuration:
- BThese commands need to be added to the configuration:
- CThese commands need to be added to the configuration:
- DNo further routing configuration is required.
How the community answered
(56 responses)- A5% (3)
- B14% (8)
- C4% (2)
- D77% (43)
Explanation
Since all the same router (C-router) is the default gateway for all three VLANs, all traffic destined to a different VLAN will be sent to the C-router. The C-router will have knowledge of all three networks since they will appear as directly connected in the routing table. Since the C-router already knows how to get to all three networks, no routing protocols need to be configured.
