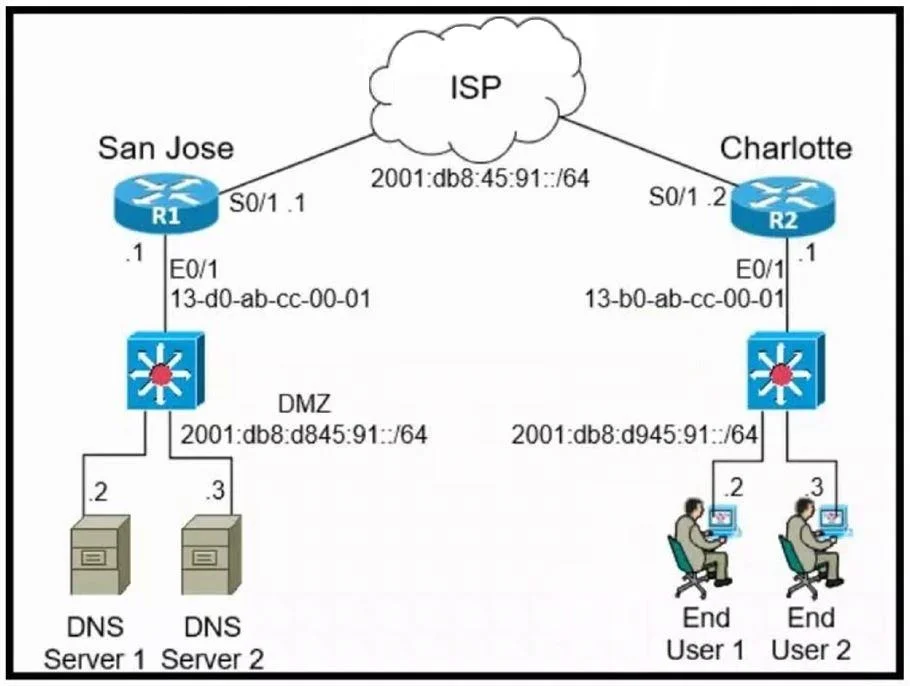

Refer to the exhibit. The IPv6 address for the LAN segment on router R2 must be configured using the EUI-64 format. When configured which ipv6 address is produced by the router?

This option presents an IPv6 address with a host identifier that does not align with the correct EUI-64 conversion process from the assumed MAC address, either due to incorrect bit inversion or FFFE insertion.

An IPv6 EUI-64 interface identifier is generated by taking the 48-bit MAC address, inserting FFFE in the middle (between the 3rd and 4th octets), and then inverting the 7th bit of the first octet (the U/L bit). Given a MAC address of `13:B0:AB:CC:01` for R2's LAN interface, applying these rules results in the host identifier `11B0:ABFF:FECC:1`, which, when combined with the network prefix `2001:db8:d945:91::/64`, forms the full address `2001:db8:d945:91:11B0:ABFF:FECC:1`.

This option's IPv6 host identifier would be derived from a different MAC address or an incorrect application of the EUI-64 rules.

This option contains an IPv6 host identifier that results from an incorrect EUI-64 conversion from the implied MAC address, showing deviations in the hexadecimal values or FFFE placement.
