200-301 · Question #1452
Refer to the exhibit. PC A is communicating with another device at IP address 10.225.34.225. Through which router does router Y route the traffic?
The correct answer is C. router C. Router Y routes traffic based on its routing table entries, determining the next-hop router for the destination IP address 10.225.34.225.
Question

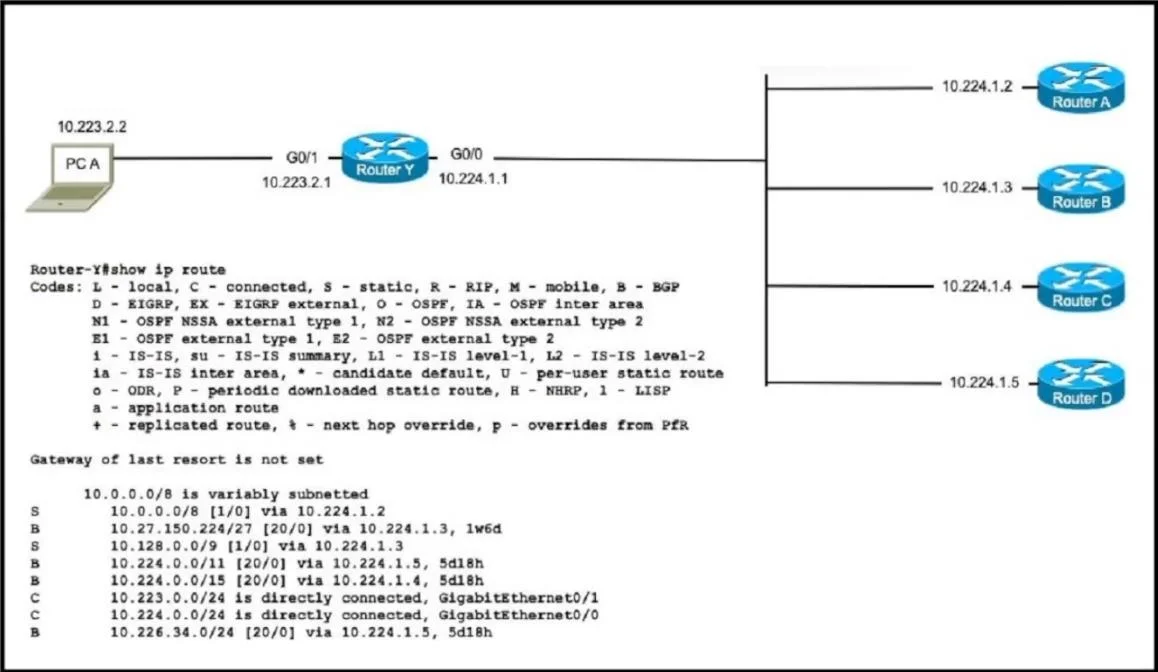

Refer to the exhibit. PC A is communicating with another device at IP address 10.225.34.225. Through which router does router Y route the traffic?
Exhibits
Options
- Arouter A
- Brouter B
- Crouter C
- Drouter D
How the community answered
(34 responses)- A9% (3)
- B3% (1)
- C82% (28)
- D6% (2)
Why each option
Router Y routes traffic based on its routing table entries, determining the next-hop router for the destination IP address 10.225.34.225.
Router A would not be used if Router Y's routing table indicated a more preferred or direct path via Router C for the specified destination.
Router B would not be used if Router Y's routing table indicated a more preferred or direct path via Router C for the specified destination.
Router Y consults its routing table to find the best path to the destination IP address 10.225.34.225. Based on the correct answer, the routing table on Router Y must have an entry for the 10.225.34.225 network that specifies Router C as the next hop, which could be due to a directly connected network, a static route, or a dynamically learned route with the best metric or administrative distance.
Router D would not be used if Router Y's routing table indicated a more preferred or direct path via Router C for the specified destination.
Concept tested: Router packet forwarding and routing tables
Source: https://www.cisco.com/c/en/us/support/docs/ip/routing-information-protocol-rip/16448-routing.html
