200-301 · Question #1405
Refer to the exhibit. VoIP is being implemented in the network using VLAN ID 73 and named "VoIP". Each user needs a Cisco IP phone at their desk. Switchport e0/0 has been configured as an access port
The correct answer is D. vlan 73. To complete the VoIP implementation on switchport e0/0, the command sequence must configure the port to support the specified voice VLAN 73, enabling the Cisco IP phone to use CDP to discover this VLAN.
Question

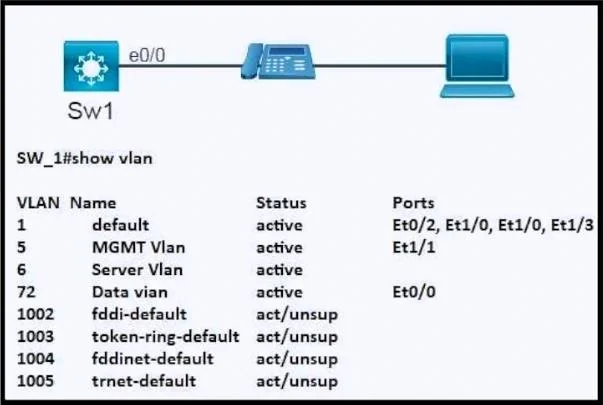

Refer to the exhibit. VoIP is being implemented in the network using VLAN ID 73 and named "VoIP". Each user needs a Cisco IP phone at their desk. Switchport e0/0 has been configured as an access port in the data VLAN. Cisco Discovery Protocol is enabled globally. Which command sequence completed the configuration?
Exhibits
Options
- Avlan73
- Bvlan 73
- Cvlan 73
- Dvlan 73
How the community answered
(41 responses)- A2% (1)
- B12% (5)
- C5% (2)
- D80% (33)
Why each option
To complete the VoIP implementation on switchport e0/0, the command sequence must configure the port to support the specified voice VLAN 73, enabling the Cisco IP phone to use CDP to discover this VLAN.
This choice, as provided ("vlan73"), is an incomplete command and only defines a VLAN or enters VLAN configuration mode, rather than configuring a specific switchport for voice VLAN functionality.
This choice, as provided ("vlan 73"), is an incomplete command and only defines a VLAN or enters VLAN configuration mode, rather than configuring a specific switchport for voice VLAN functionality.
This choice, as provided ("vlan 73"), is an incomplete command and only defines a VLAN or enters VLAN configuration mode, rather than configuring a specific switchport for voice VLAN functionality.
The correct command sequence to complete the VoIP configuration for a Cisco IP phone on an access port, while CDP is enabled, is to use the `switchport voice vlan 73` command within the interface configuration mode. This allows the IP phone to discover VLAN 73 via CDP and tag its voice traffic accordingly, while data traffic for a connected PC remains on the existing data VLAN.
Concept tested: Cisco Voice VLAN configuration
Source: https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst9300/software/release/16-12/configuration_guide/lacll/b_1612_lacll_9300_cg/configuring_voice_vlan.html
