200-301 · Question #1108

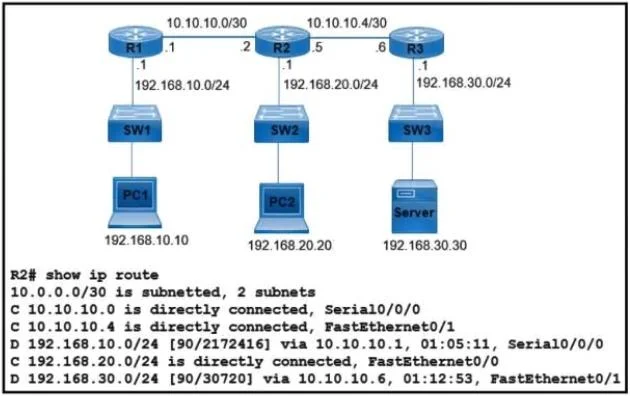

Refer to the exhibit. What is the next-hop IP address for R2 so that PC2 reaches the application server via EIGRP?
The correct answer is B. 10.10.10.6. R2 determines the next-hop IP address for reaching the application server via EIGRP by consulting its EIGRP routing table for the optimal path.
Question
Exhibits
Options
- A192.168.30.1
- B10.10.10.6
- C10.10.10.5
- D192.168.20.1
How the community answered
(49 responses)- A22% (11)
- B59% (29)
- C6% (3)
- D12% (6)
Why each option
R2 determines the next-hop IP address for reaching the application server via EIGRP by consulting its EIGRP routing table for the optimal path.
This IP address is not identified as the next-hop on the optimal EIGRP path from R2 to the application server based on the provided choices and problem context.
The IP address 10.10.10.6 represents the interface of a directly connected EIGRP neighbor, which R2's routing table has determined to be the optimal next-hop for reaching the application server through the EIGRP routing protocol.
The IP address 10.10.10.5 would likely be an interface IP address on R2 itself, which cannot be a next-hop for traffic leaving R2.
This IP address is not identified as the next-hop on the optimal EIGRP path from R2 to the application server based on the provided choices and problem context.
Concept tested: EIGRP next-hop determination
Source: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_eigrp/configuration/15-mt/ire-15-mt-book/ire-basic-conf.html
