200-301 · Question #1099

Refer to the exhibit. The New York router must be configured so that traffic to 2000::1 is sent primarily via the Atlanta site, with a secondary path via Washington that has an administrative distance

The correct answer is A. ipv6 route 2000::1/128 2012::1 E. ipv6 route 2000::1/128 2023::3 2. The New York router requires two static IPv6 routes for 2000::1: a primary route to Atlanta with the default administrative distance of 1, and a secondary route to Washington with an administrative distance of 2.

Submitted by kavita_s· Mar 5, 2026IP Connectivity

Question

Refer to the exhibit. The New York router must be configured so that traffic to 2000::1 is sent primarily via the Atlanta site, with a secondary path via Washington that has an administrative distance of 2. Which two commands must be configured on the New York router? (Choose two.)

Exhibits

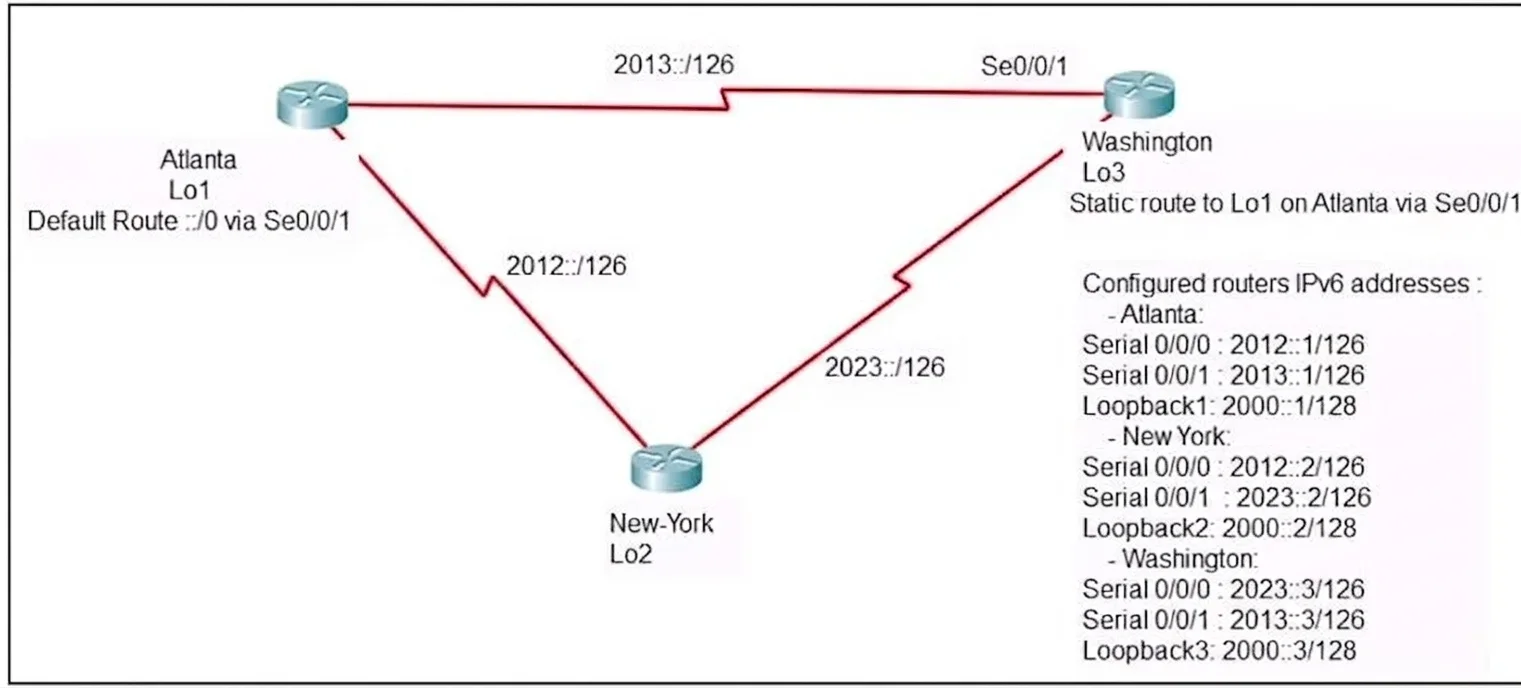

200-301 question #1099 exhibit 1

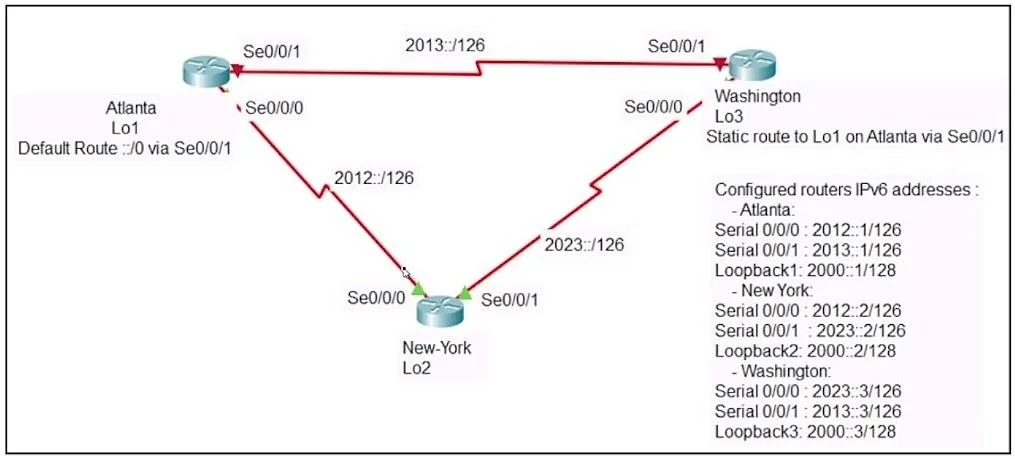

200-301 question #1099 exhibit 2

Options

  • Aipv6 route 2000::1/128 2012::1
  • Bipv6 route 2000::1/128 2012::1 5
  • Cipv6 route 2000::1/128 2012::2
  • Dipv6 route 2000::1/128 2023::2 5
  • Eipv6 route 2000::1/128 2023::3 2

How the community answered

(31 responses)
  • A
    55% (17)
  • B
    10% (3)
  • C
    6% (2)
  • D
    29% (9)

Why each option

The New York router requires two static IPv6 routes for 2000::1: a primary route to Atlanta with the default administrative distance of 1, and a secondary route to Washington with an administrative distance of 2.

Aipv6 route 2000::1/128 2012::1Correct

This command establishes the primary static IPv6 route for the destination 2000::1/128 via the next-hop 2012::1, utilizing the default administrative distance of 1, which is preferred over paths with higher administrative distances.

Bipv6 route 2000::1/128 2012::1 5

This command assigns an administrative distance of 5, which would make it less preferred than both the required primary path (AD 1) and the secondary path (AD 2).

Cipv6 route 2000::1/128 2012::2

While a static route with AD 1, the next-hop 2012::2 is not the one chosen in the correct answer set for the Atlanta site.

Dipv6 route 2000::1/128 2023::2 5

This command assigns an administrative distance of 5 for the Washington path, which does not meet the requirement for a secondary path with an administrative distance of 2.

Eipv6 route 2000::1/128 2023::3 2Correct

This command configures the secondary static IPv6 route for 2000::1/128 via the next-hop 2023::3, with a specified administrative distance of 2, ensuring it is used only if the primary path (with AD 1) becomes unavailable.

Concept tested: IPv6 static routing, administrative distance

Source: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_static/configuration/xe-16/irs-xe-16-book/irs-ipv6-static-routes.html

Topics

#IPv6 static route#floating static route#administrative distance#IPv6 routing
