200-301 · Question #1038
Refer to the exhibit. A network engineer must provide configured IP addressing details to investigate a firewall rule issue. Which subnet and mask Identify what is configured on the eth0 interface?
The correct answer is C. 10.8.128.0/19. This question requires identifying the correct network address and subnet mask for a given IP configuration on the eth0 interface, implying an IP address like 10.8.138.x with a /19 mask.
Question
Refer to the exhibit. A network engineer must provide configured IP addressing details to investigate a firewall rule issue. Which subnet and mask Identify what is configured on the eth0 interface?

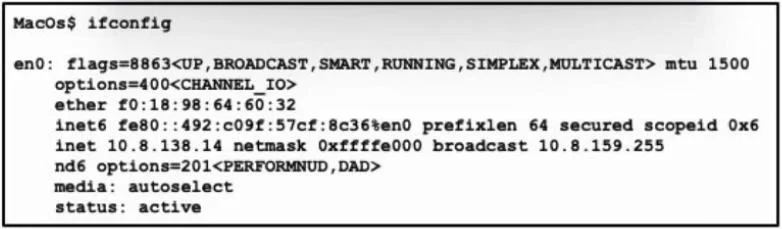

Exhibits
Options
- A10.8.0.0/16
- B10.8.64.0/18
- C10.8.128.0/19
- D10.8.138.0/24
How the community answered
(21 responses)- A5% (1)
- B14% (3)
- C76% (16)
- D5% (1)
Why each option
This question requires identifying the correct network address and subnet mask for a given IP configuration on the eth0 interface, implying an IP address like 10.8.138.x with a /19 mask.
10.8.0.0/16 defines a much larger network (255.255.0.0) that is too broad if a /19 mask is configured on the interface.
10.8.64.0/18 (255.255.192.0) defines a subnet range that begins at 64 in the third octet and does not include 138.
A /19 subnet mask (255.255.224.0) means the first 19 bits define the network portion; for an IP address such as 10.8.138.X, the binary representation of 138 (10001010) reveals a network portion of 100 in the third octet, which is 128 in decimal, correctly identifying the network address as 10.8.128.0/19.
10.8.138.0/24 defines a network where the third octet is entirely part of the network address, which contradicts the /19 mask implied by the correct answer.
Concept tested: IP subnet calculation and identification
Source: https://www.cisco.com/c/en/us/support/docs/ip/routing-information-protocol-rip/13788-3.html
Topics
Community Discussion
No community discussion yet for this question.
