Cisco
200-150 · Question #72
What can you tell about server ports and their external Interfaces from the exhibits?
The correct answer is C. Server interface vfc3/1 is assigned to NP uplinks fc2/1. fc2/2, fc2/3. and fc2/4. There are 4. el_4_0_1a/CLIConfigurationGuide/npv.html
Cisco Data Center Storage
Question
What can you tell about server ports and their external Interfaces from the exhibits?

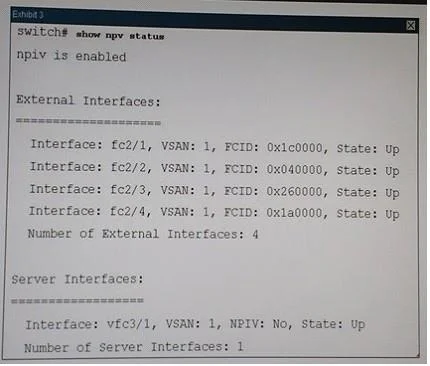

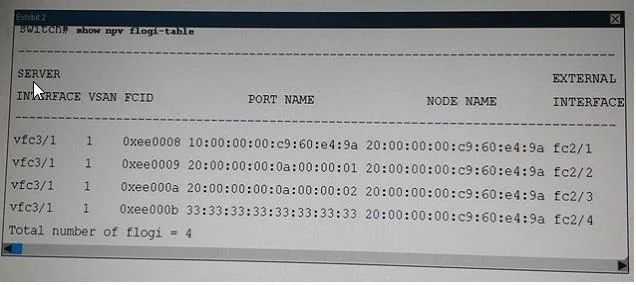

Exhibits
Options
- Avfc3/1 is not correctly connected to server external interface fc2/1.
- Bvfc3/1 is not correctly connected to server external Interface fc2/1 and flogi are unsuccessful.
- CServer interface vfc3/1 is assigned to NP uplinks fc2/1. fc2/2, fc2/3. and fc2/4. There are 4
- DServer interface vfc3/1 is assigned to NP uplinks fc2/1, fc2/2, fc2/3, and fc2/4. There are 4 flogi
How the community answered
(31 responses)- A6% (2)
- B23% (7)
- C58% (18)
- D13% (4)
Explanation
el_4_0_1a/CLIConfigurationGuide/npv.html
Topics
#NPV#virtual Fibre Channel#vfc#server port analysis
