200-150 · Question #71

Refer to the exhibit. NP uplink ports connected to the core NPIV switch do not come online and are stuck in an initializing state. Which options is a cause for this behavior?

The correct answer is B. The core switch has not been enabled for NPIV. NPV mode requires NPIV to be enabled on the core switch; without it, NP uplink ports cannot complete the FLOGI process and remain stuck in an initializing state.

Cisco Data Center Storage

Question

Refer to the exhibit. NP uplink ports connected to the core NPIV switch do not come online and are stuck in an initializing state. Which options is a cause for this behavior?

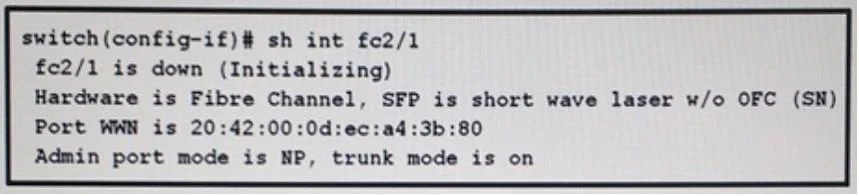

Exhibit

200-150 question #71 exhibit

Options

  • AThe upstream NP Ports and the downstream server F Ports on the NPV edge switch may not be
  • BThe core switch has not been enabled for NPIV.
  • CThe upstream VSAN ports and the server ports are in full duplex mode.
  • DRelated VSAN identifier is not allowed on Virtual Port Channels toward the edge switch.

How the community answered

(27 responses)
  • A
    4% (1)
  • B
    74% (20)
  • C
    15% (4)
  • D
    7% (2)

Why each option

NPV mode requires NPIV to be enabled on the core switch; without it, NP uplink ports cannot complete the FLOGI process and remain stuck in an initializing state.

AThe upstream NP Ports and the downstream server F Ports on the NPV edge switch may not be

A mismatch between upstream NP ports and downstream F ports is a different configuration concern and does not directly cause NP uplinks to be stuck when the core switch lacks NPIV support.

BThe core switch has not been enabled for NPIV.Correct

In NPV mode, the edge switch presents its N-Ports to the core switch, which must support NPIV to assign multiple FCIDs over a single physical port. If NPIV is not enabled on the core switch, it cannot accept the N-Port login requests from the NPV device, causing all NP uplink ports to remain in an initializing state indefinitely.

CThe upstream VSAN ports and the server ports are in full duplex mode.

Fibre Channel ports do not operate with an Ethernet-style full or half duplex setting; this is not a valid FC parameter and has no bearing on port initialization state.

DRelated VSAN identifier is not allowed on Virtual Port Channels toward the edge switch.

VSAN identifiers not being allowed on Virtual Port Channels is a trunking misconfiguration that is unrelated to the NPIV dependency required for NP uplink initialization.

Concept tested: NPV mode dependency on NPIV enabled at core switch

Source: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/configuration/guide/cli_rel_4_0_1a/CLIConfigurationGuide/npv.html
