XK0-005 · Question #1423

A user cannot reach the internet from a workstation. A systems administrator performs diagnostics with the following results: Which of the following is the cause for lack of internet connectivity?

The correct answer is C. The incorrect network mask is set for the interface enp2so on the workstation. An incorrect network mask on a workstation's interface can prevent it from properly determining network segments, leading to an inability to reach the local gateway and, consequently, the internet.

Troubleshooting

Question

A user cannot reach the internet from a workstation. A systems administrator performs diagnostics with the following results: Which of the following is the cause for lack of internet connectivity?

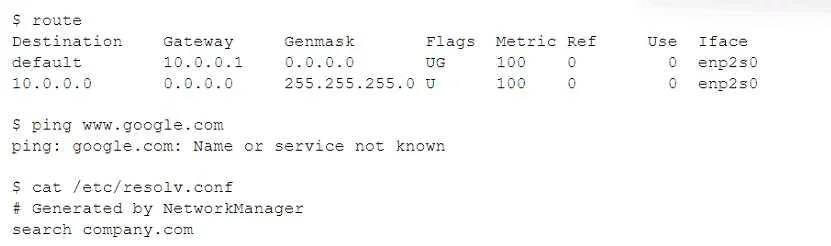

Exhibit

XK0-005 question #1423 exhibit

Options

  • AThe workstation is not using a DNS server.
  • BThe network gateway is not reachable from the workstation.
  • CThe incorrect network mask is set for the interface enp2so on the workstation.
  • DThe company's firewall is blocking connections from the workstation to the internet.

How the community answered

(66 responses)
  • A
    3% (2)
  • B
    11% (7)
  • C
    82% (54)
  • D
    5% (3)

Why each option

An incorrect network mask on a workstation's interface can prevent it from properly determining network segments, leading to an inability to reach the local gateway and, consequently, the internet.

AThe workstation is not using a DNS server.

If the workstation is not using a DNS server, it would be unable to resolve domain names, but it could still access internet resources directly by IP address if network connectivity is otherwise sound.

BThe network gateway is not reachable from the workstation.

While an unreachable network gateway certainly causes a lack of internet connectivity, an incorrect network mask on the workstation could be the underlying reason for the gateway being unreachable from the workstation by miscalculating the local subnet.

CThe incorrect network mask is set for the interface enp2so on the workstation.Correct

An incorrect network mask prevents the workstation from correctly identifying whether destination IP addresses are on the local network or require routing through the default gateway, thereby disrupting all external network communication, including internet access.

DThe company's firewall is blocking connections from the workstation to the internet.

A company's firewall blocking connections would prevent internet access, but this typically occurs at a network perimeter device and not due to a misconfiguration on the workstation's local network interface itself like an incorrect network mask.

Concept tested: Network troubleshooting - IP addressing

Source: https://www.cisco.com/c/en/us/support/docs/ip/routing-information-protocol-rip/16448-ipaddressing.html

Topics

#Network Troubleshooting#IP Addressing#Subnet Mask#Linux Networking
