Hourly backup jobs are configured to local repositories. Daily backups must be sent from Site B to the repository on Site A. The connection between the two sites does not allow a direct backup to…

Question

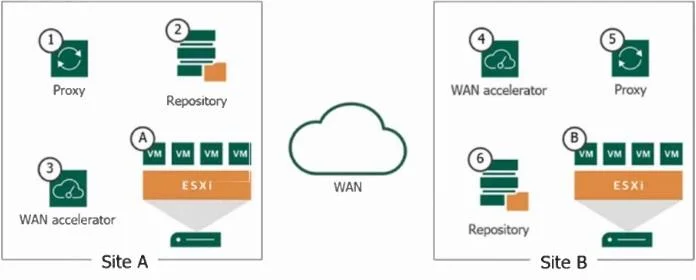

Exhibit

Options

• AA backup copy job and components 6 ? 4 ? 3 ? 2
• BA backup job and components 5 ? 4 ? 3 ? 2
• CA backup job and components 5 ? 2
• DA backup copy job and components 6?5?4?3?1 ? 2

• A
  74% (25)
• B
  6% (2)
• C
  6% (2)
• D
  15% (5)

Explanation

For the given scenario where daily backups need to be sent from Site B to a repository at Site A and the connection between the two sites is limited, thus impacting the ability to complete direct backups within the backup window, a Backup Copy Job would be appropriate. A Backup Copy Job is a feature in Veeam Backup & Replication that allows you to create several instances of the same backup files across different locations (repositories). In the image provided, the components involved in the Backup Copy Job from Site B to Site A would 6 (Repository at Site B): This is the source repository where the hourly backup jobs are stored. 4 and 3 (WAN Accelerators at both sites): These components optimize data transfer over the 2 (Repository at Site A): This is the target repository where the backup copies will be stored. This setup would minimize impact on the source VMs at Site B since the Backup Copy Job works with backup data rather than directly with the production VMs, thus reducing the load on those VMs during the process.

No community discussion yet for this question.
