VCPN610 · Question #141
The diagrams show two possible physical network architectures. Each architecture provides a means in dealing with the pictured failure. Which architecture provides the highest degree of connectivity…
The correct answer is D. Diagram B's architecture will provide the highest percentage of connectivity in times of failure. See the full explanation below for the reasoning.
Question

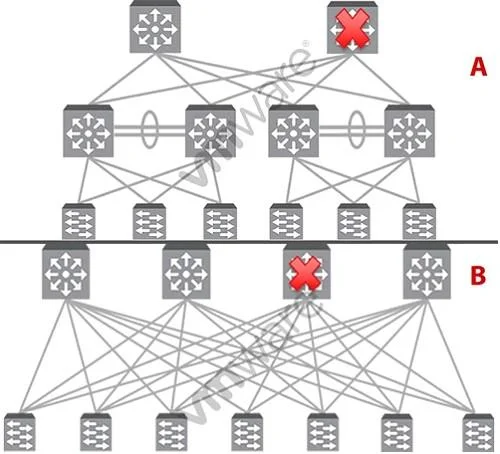

The diagrams show two possible physical network architectures. Each architecture provides a means in dealing with the pictured failure. Which architecture provides the highest degree of connectivity in the event of the pictured failure?
Exhibit
Options
- ABoth designs will provide the same percentage ofconnectivityin times of failure.
- BNeither design is properly architected to work around the displayed failure.
- CDiagram A's architecture will provide the highest percentage of connectivity in times of failure.
- DDiagram B's architecture will provide the highest percentage of connectivity in times of failure.
How the community answered
(22 responses)- A9% (2)
- B5% (1)
- C5% (1)
- D82% (18)
Community Discussion
No community discussion yet for this question.
