VCPD510 · Question #166

Click the Exhibit button. An administrator has deployed a two-node cluster with HA and DRS enabled. DRS has been configured for fully automated mode. The management and vMotion interfaces have been…

The correct answer is C. Connect the network cable to the correct physical network. See the full explanation below for the reasoning.

Question

Click the Exhibit button. An administrator has deployed a two-node cluster with HA and DRS enabled. DRS has been configured for fully automated mode. The management and vMotion interfaces have been configured on separate physical networks. Initial DRS testing on this cluster reveals that virtual machines are not being migrated despite great disparity in resource use between the ESX hosts in the cluster. The exhibit shows the error and the network configuration for one of the hosts. Which task would successfully resolve this problem?

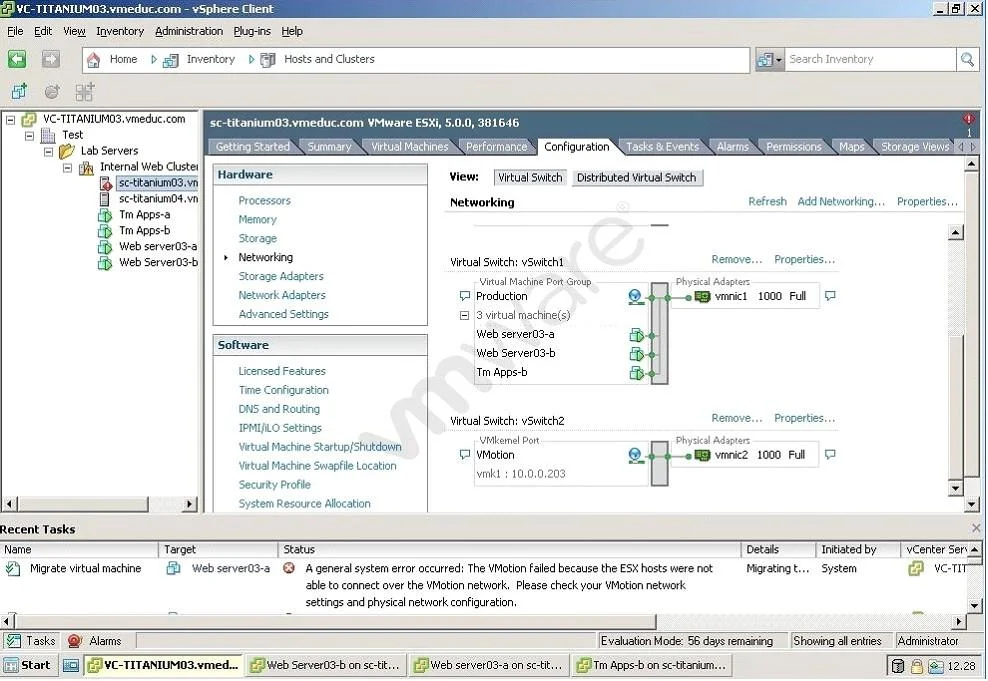

Exhibit

VCPD510 question #166 exhibit

Options

  • AAdd a vmnic to the VMkernel port
  • BConfigure DRS Migration Threshold to Aggressive
  • CConnect the network cable to the correct physical network
  • DMigrate vitual machines manually using VMotion

How the community answered

(30 responses)
  • A
    3% (1)
  • B
    7% (2)
  • C
    77% (23)
  • D
    13% (4)
