SIMULATION 2 A security analyst is creating the first draft of a network diagram for the company's new customer- facing payment application that will be hosted by a third-party cloud service provider.

This task focuses on designing a secure, redundant web application network diagram by selecting appropriate architectural components and subnet types.

Submitted by fatema_kw· Mar 6, 2026Security architecture

Question

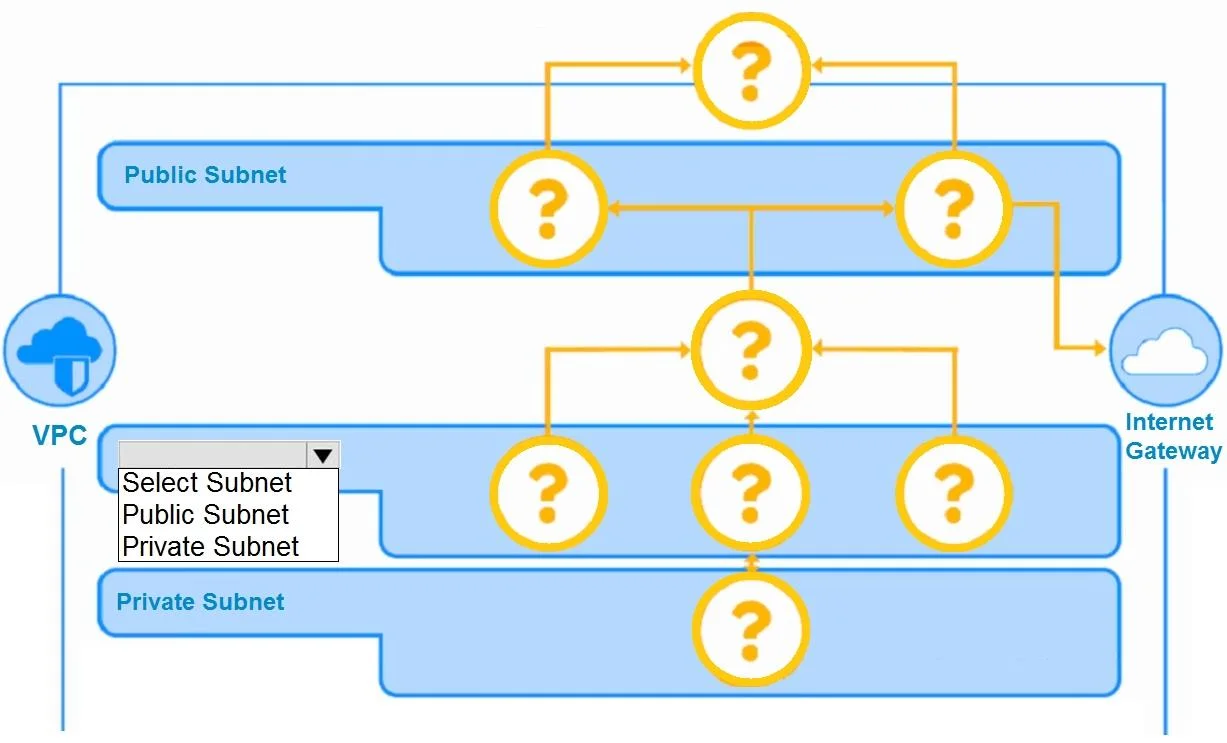

SIMULATION 2 A security analyst is creating the first draft of a network diagram for the company's new customer- facing payment application that will be hosted by a third-party cloud service provider. INSTRUCTIONS Click the ? to select the appropriate icons to create a secure, redundant web application. Then use the dropdown menu to select the appropriate subnet type. Every space in the diagram must be filled. If at any time you would like to bring back the initial state of the simulation, please click the Reset All button. Answer:

Exhibits

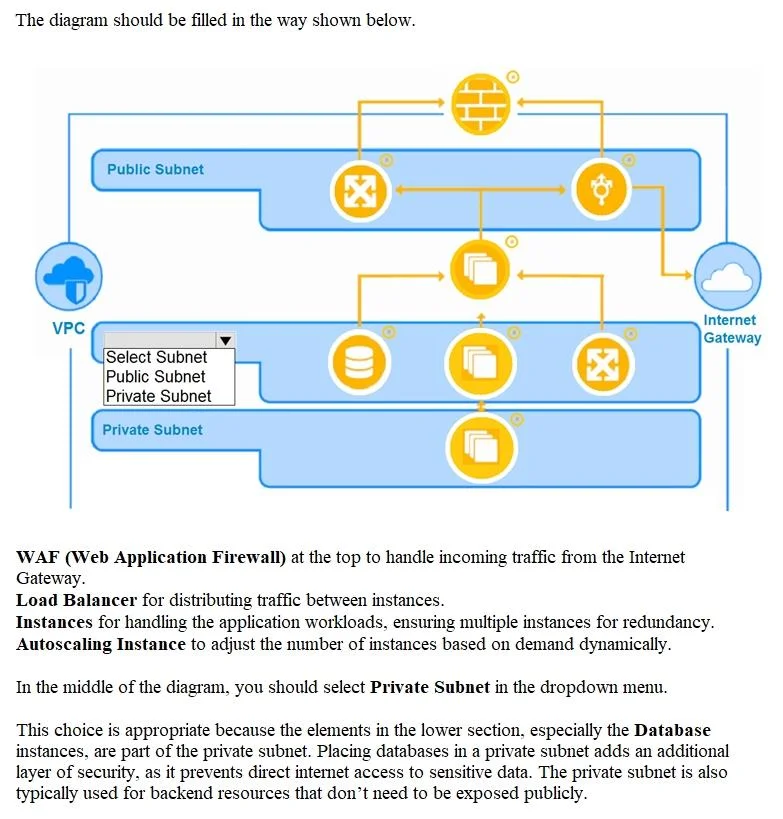

Explanation

This task focuses on designing a secure, redundant web application network diagram by selecting appropriate architectural components and subnet types.

Concept tested. Secure VPC architecture, WAF, Load Balancer, public/private subnets

Reference. https://docs.aws.amazon.com/vpc/latest/userguide/VPC_Scenario2.html
