Question

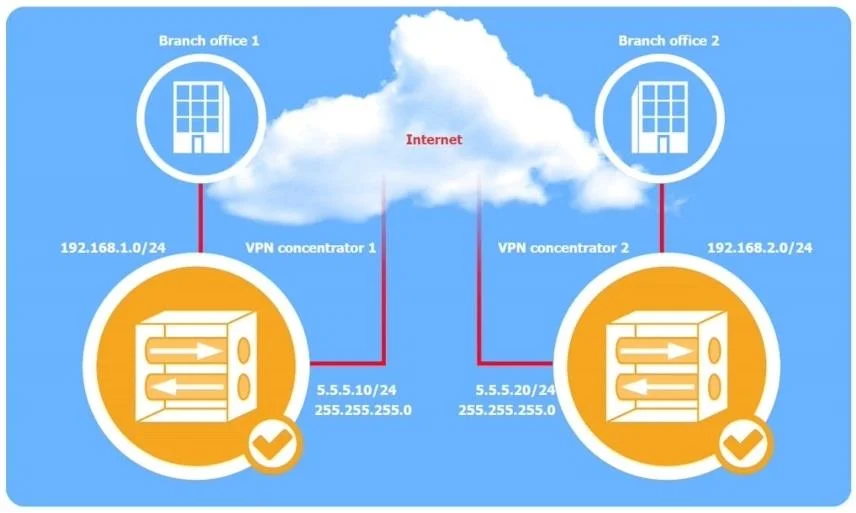

SIMULATION 1 A systems administrator is configuring a site-to-site VPN between two branch offices. Some of the settings have already been configured correctly. The systems administrator has been provided the following requirements as part of completing the configuration:
- Most secure algorithms should be selected
- All traffic should be encrypted over the VPN
- A secret password will be used to authenticate the two VPN
concentrators INSTRUCTIONS Click on the two VPN Concentrators to configure the appropriate settings. If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.
Exhibits
Options
- ASee below explanation
How the community answered
(48 responses)- A100% (48)
Explanation

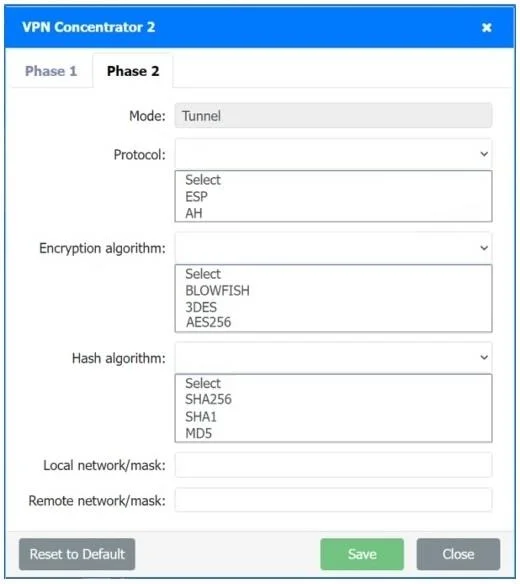

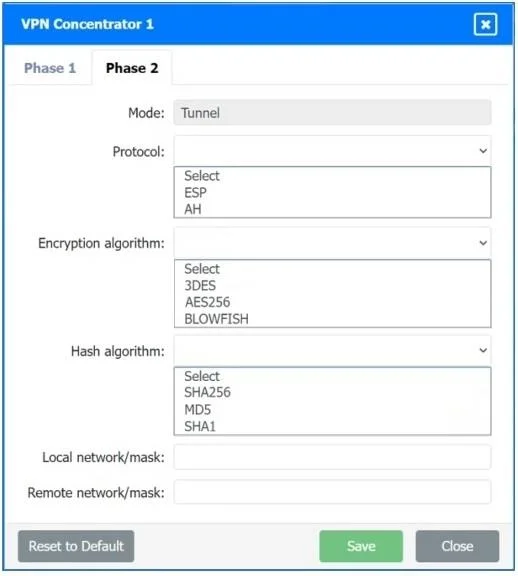

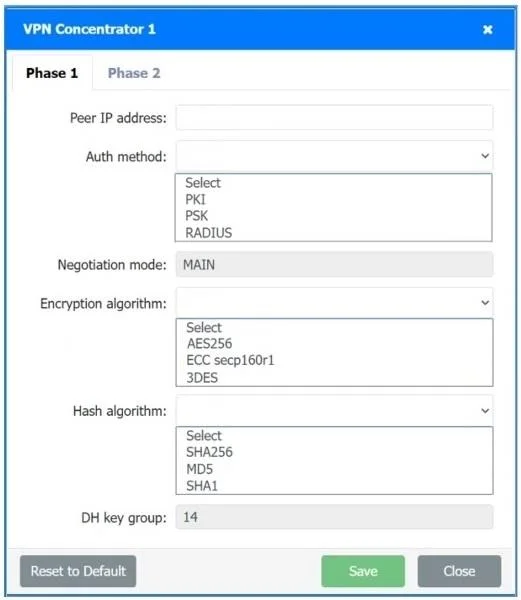

VPN Concentrator 1 (Branch Office 1) Configuration: Peer IP address: 5.5.5.20 (IP of VPN Concentrator 2) Auth method: PSK (Pre-Shared Key) Negotiation mode: MAIN Encryption algorithm: AES256 Hash algorithm: SHA256 DH key group: 14 Protocol: ESP (Encapsulating Security Payload) Encryption algorithm: AES256 Hash algorithm: SHA256 Local network/mask: 192.168.1.0/24 Remote network/mask: 192.168.2.0/24 VPN Concentrator 2 (Branch Office 2) Configuration: Peer IP address: 5.5.5.10 (IP of VPN Concentrator 1) Auth method: PSK (Pre-Shared Key) Negotiation mode: MAIN Encryption algorithm: AES256 Hash algorithm: SHA256 DH key group: 14 Protocol: ESP (Encapsulating Security Payload) Encryption algorithm: AES256 Hash algorithm: SHA256 Local network/mask: 192.168.2.0/24 Remote network/mask: 192.168.1.0/24
