SK0-005 · Question #125
A server administrator is configuring the IP address on a newly provisioned server in the testing environment. The network VLANs are configured as follows: The administrator configures the IP address
The correct answer is A. IP address: 192.168.10.2/24. The IP should be on the same LAN. 192.168.10.1/24 is the Gateway IP address from the table. The server cannot use that 10.1 but CAN use 10.2. VLANs allow network administrators to automatically limit access to a specified group of users by dividing workstations into different iso
Question

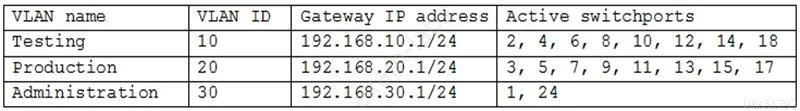

A server administrator is configuring the IP address on a newly provisioned server in the testing environment. The network VLANs are configured as follows:
The administrator configures the IP address for the new server as follows:
IP address: 192.168.1.1/24 Default gateway: 192.168.10.1 A ping sent to the default gateway is not successful. Which of the following IP address/default gateway combinations should the administrator have used for the new server?
Exhibit
Options
- AIP address: 192.168.10.2/24
- BIP address: 192.168.1.2/24
- CIP address: 192.168.10.3/24
- DIP address: 192.168.10.24/24
How the community answered
(32 responses)- A84% (27)
- B3% (1)
- C3% (1)
- D9% (3)
Explanation
The IP should be on the same LAN. 192.168.10.1/24 is the Gateway IP address from the table. The server cannot use that 10.1 but CAN use 10.2. VLANs allow network administrators to automatically limit access to a specified group of users by dividing workstations into different isolated LAN segments. When users move their workstations, administrators don't need to reconfigure the network or change VLAN groups.
