PW0-270 · Question #40
Using the exhibit as a reference, answer the following. STA1 sent a data frame to Mesh AP2 destined for a local file server on the same subnet with MAC address 00:11:22:33:44:55. Mesh AP2's mesh…
The correct answer is B. RA = Mesh AP1's MAC Address D. DA = 00:11:22:33:44:55 F. From DS = 1. See the full explanation below for the reasoning.
Question
Using the exhibit as a reference, answer the following. STA1 sent a data frame to Mesh AP2 destined for a local file server on the same subnet with MAC address 00:11:22:33:44:55. Mesh AP2's mesh forwarding algorithm determined that the frame should be forwarded through Mesh AP1. In the frame sent from Mesh AP2 to Mesh AP1, what is true of the contents of the MAC header? (Choose 3)

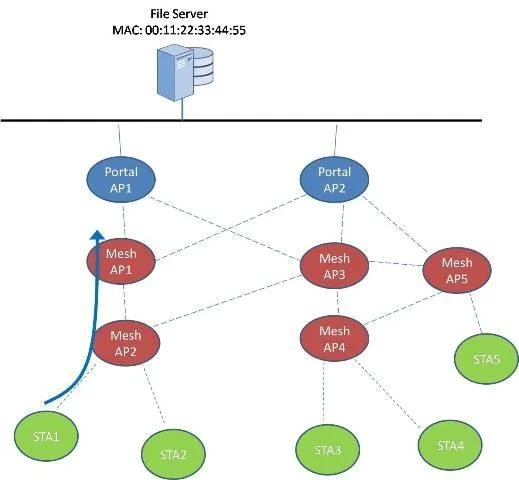

Exhibit
Options
- ASA = Mesh AP2's MAC Address
- BRA = Mesh AP1's MAC Address
- CTA = STA1's MAC Address
- DDA = 00:11:22:33:44:55
- ETo DS = 0
- FFrom DS = 1
How the community answered
(20 responses)- A5% (1)
- B75% (15)
- C5% (1)
- E15% (3)
Community Discussion
No community discussion yet for this question.
