NSE7_EFW-7.2 · Question #60
Examine the output of the 'get router info ospf interface' command shown in the exhibit; then answer the question below. Which statements are true regarding the above output? (Choose two.)
The correct answer is A. The port4 interface is connected to the OSPF backbone area. C. There are at least 5 OSPF routers connected to the port4 network. On BROADCAST network there are 4 neighbors, among which 1DR +1BDR. So our FG has 4 neighbors, but create adjacency only with 2 (with DR and BDR). 2 neighbors DRother (not down).
Question
Examine the output of the 'get router info ospf interface' command shown in the exhibit; then answer the question below. Which statements are true regarding the above output? (Choose two.)

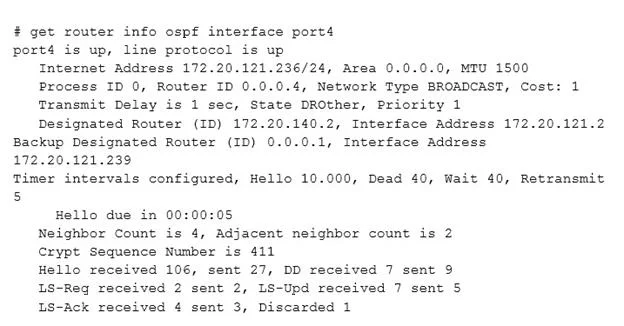

Exhibit
Options
- AThe port4 interface is connected to the OSPF backbone area.
- BThe local FortiGate has been elected as the OSPF backup designated router
- CThere are at least 5 OSPF routers connected to the port4 network.
- DTwo OSPF routers are down in the port4 network.
How the community answered
(21 responses)- A76% (16)
- B19% (4)
- D5% (1)
Explanation
On BROADCAST network there are 4 neighbors, among which 1DR +1BDR. So our FG has 4 neighbors, but create adjacency only with 2 (with DR and BDR). 2 neighbors DRother (not down).
Topics
Community Discussion
No community discussion yet for this question.
