FortiGate VPN

Question

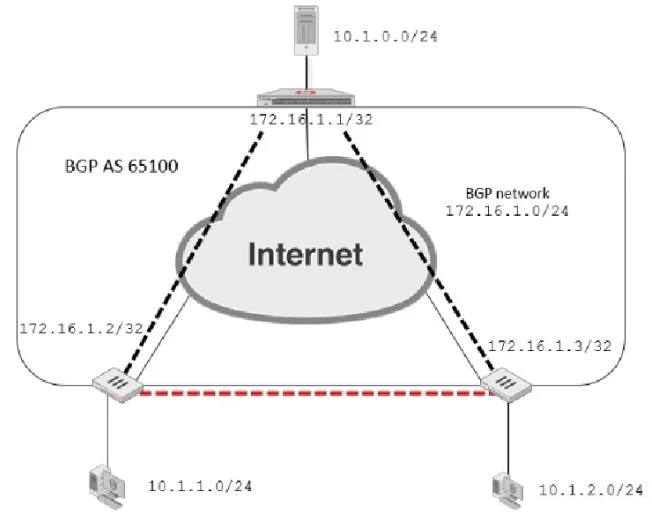

Refer to the exhibit, which contains an ADVPN network diagram and a partial BGP configuration. Network diagram Partial BGP configuration Which two parameters should you configure in config neighbor-range? (Choose two.)

Exhibits

Options

Aset neighbor-group advpn
Bset route-reflector-client enable
Cset prefix 10.1.0 255.255.254.0
Dset prefix 172.16.1.0 255.255.255.0

How the community answered

(31 responses)

A
81% (25)
B
13% (4)
C
6% (2)

Explanation

In the ADVPN configuration for BGP, you should specify the prefix that the neighbors can advertise. Option A is correct as you would configure the BGP network prefix that should be advertised to the neighbors, which matches the BGP network in the diagram. Option C is also correct since you should reference the neighbor group configured for the ADVPN setup within the BGP configuration. https://docs.fortinet.com/document/fortigate/6.4.4/cli-reference/557620/config-router-bgp

Topics

#ADVPN#BGP neighbor-range#neighbor-group#spoke routing
