Fortinet
NSE7_EFW-6.0 · Question #99
View the exhibit, which contains a partial routing table, and then answer the question below. Assuming all the appropriate firewall policies are configured, which of the following pings will…
The correct answer is B. Source IP address 10.72.3.27, Destination IP address 10.1.0.52. C. Source IP address 10.72.3.52, Destination IP address 10.1.0.254. See the full explanation below for the reasoning.
Question
View the exhibit, which contains a partial routing table, and then answer the question below. Assuming all the appropriate firewall policies are configured, which of the following pings will FortiGate route? (Choose two.)

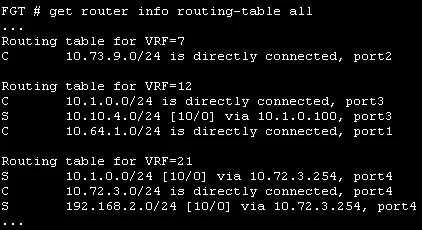

Exhibit
Options
- ASource IP address 10.1.0.24, Destination IP address 10.72.3.20.
- BSource IP address 10.72.3.27, Destination IP address 10.1.0.52.
- CSource IP address 10.72.3.52, Destination IP address 10.1.0.254.
- DSource IP address 10.73.9.10, Destination IP address 10.72.3.15.
How the community answered
(44 responses)- A11% (5)
- B84% (37)
- D5% (2)
Community Discussion
No community discussion yet for this question.
