NSE6_SDW_AD-7.6 · Question #66
Refer to the exhibits, which show the configuration of an SD-WAN rule and the corresponding rule status and routing table. The administrator wants to understand the expected behavior for traffic…
The correct answer is B. The traffic will be routed over HUB1-VPN2. The rule is in SLA mode with two SLAs. From the status, HUB1-VPN2 and HUB1-VPN3 meet the SLA (sla(0x2) and sla(0x3)), while HUB1-VPN1 does not (sla(0x0)). Among members that meet SLA, FortiGate uses the configured order (priority-members 4 5 6) to pick the first eligible one…
Question

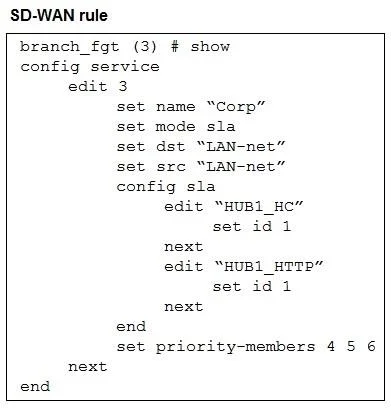

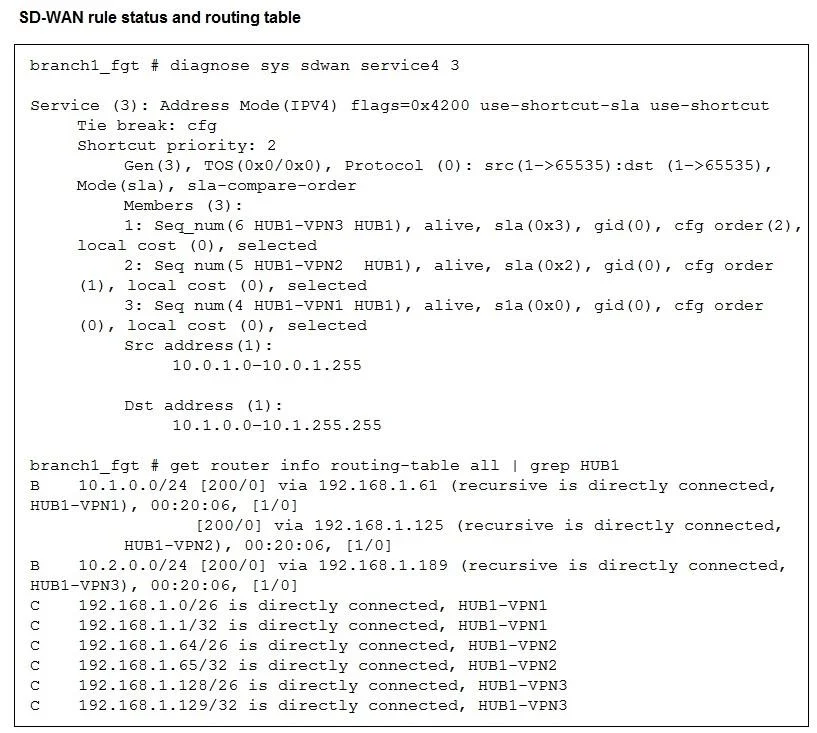

Refer to the exhibits, which show the configuration of an SD-WAN rule and the corresponding rule status and routing table. The administrator wants to understand the expected behavior for traffic matching the SD-WAN rule. Based on the exhibits, what can the administrator expect for traffic matching the SD-WAN rule?
Exhibits
Options
- AThe traffic will be routed over HUB1-VPN3.
- BThe traffic will be routed over HUB1-VPN2
- CThe traffic will be routed over HUB1-VPN1.
- DThe traffic will be load balanced across all three overlays
How the community answered
(39 responses)- A10% (4)
- B46% (18)
- C31% (12)
- D13% (5)
Explanation
The rule is in SLA mode with two SLAs. From the status, HUB1-VPN2 and HUB1-VPN3 meet the SLA (sla(0x2) and sla(0x3)), while HUB1-VPN1 does not (sla(0x0)). Among members that meet SLA, FortiGate uses the configured order (priority-members 4 5 6) to pick the first eligible one- HUB1-VPN2-so traffic is routed over HUB1-VPN2.
Topics
Community Discussion
No community discussion yet for this question.
