Fortinet
NSE6_SDW_AD-7.6 · Question #58
Refer to the exhibits. The interface details, static route configuration, and firewall policies on the managed FortiGate device are shown. You want to configure a new SD-WAN zone, named Underlay…
The correct answer is D. Delete the firewall policies. You cannot add port1 as an SD-WAN member if it's already in use by an active firewall policy.
Initial Deployment and Configuration
Question
Refer to the exhibits. The interface details, static route configuration, and firewall policies on the managed FortiGate device are shown. You want to configure a new SD-WAN zone, named Underlay, that contains the interfaces port1 and port2. What must be your first action?

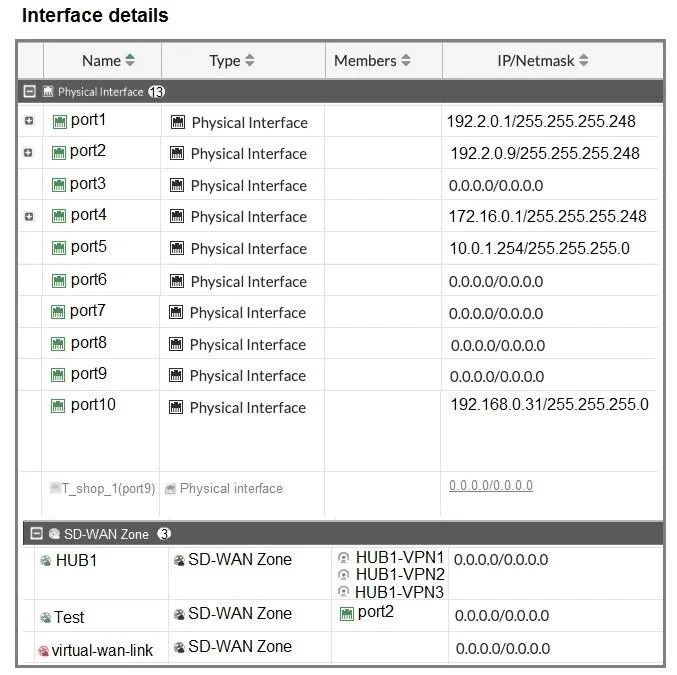

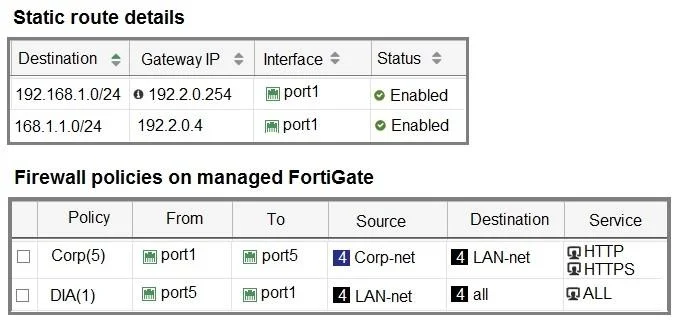

Exhibits
Options
- ADefine port1 as an SD-WAN member.
- BDelete the static routes.
- CDelete the SD-WAN Zone Test.
- DDelete the firewall policies.
How the community answered
(30 responses)- A13% (4)
- B7% (2)
- C3% (1)
- D77% (23)
Explanation
You cannot add port1 as an SD-WAN member if it's already in use by an active firewall policy.
Topics
#SD-WAN zone configuration#firewall policy dependency#interface membership#initial setup prerequisites
Community Discussion
No community discussion yet for this question.
