Fortinet
NSE6 · Question #71
Review to the network topology in the exhibit. The workstation, 172.16.1.1/24, connects to port2 of the FortiGate device, and the ISP router, 172.16.1.2, connects to port1. Without changing IP…
The correct answer is A. At least one firewall policy from port2 to port1 to allow outgoing traffic. D. The FortiGate devices configured in transparent mode. See the full explanation below for the reasoning.
Question
Review to the network topology in the exhibit. The workstation, 172.16.1.1/24, connects to port2 of the FortiGate device, and the ISP router, 172.16.1.2, connects to port1. Without changing IP addressing, which configuration changes are required to properly forward users traffic to the Internet?(Choose two)

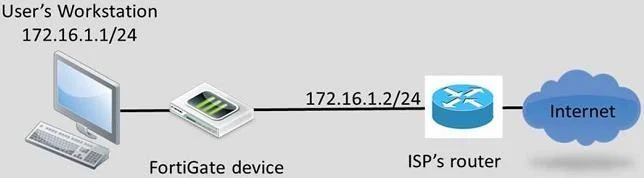

Exhibit
Options
- AAt least one firewall policy from port2 to port1 to allow outgoing traffic.
- BA default route configured in the FortiGuard devices pointing to the ISP's router.
- CStatic or dynamic IP addresses in both ForitGate interfaces port1 and port2.
- DThe FortiGate devices configured in transparent mode.
How the community answered
(26 responses)- A69% (18)
- B19% (5)
- C12% (3)
Community Discussion
No community discussion yet for this question.
