NSE5_FMG-7.0 · Question #78
Refer to the exhibit. An administrator has created a firewall address object that is used in multiple policy packages for multiple FortiGate devices in an ADOM. After the installation operation is…
The correct answer is B. 192.168.1.0/24. In the example shown on this slide, the dynamic address object LocalLan refers to the internal network address of the managed firewalls. The object has a default value of 192.168.1.0/24. The mapping rules are defined per device. For Remote-FortiGate, the address object LocalLan…
Question
Refer to the exhibit. An administrator has created a firewall address object that is used in multiple policy packages for multiple FortiGate devices in an ADOM. After the installation operation is performed, which IP/netmask will be shown on FortiManager for this firewall address object?

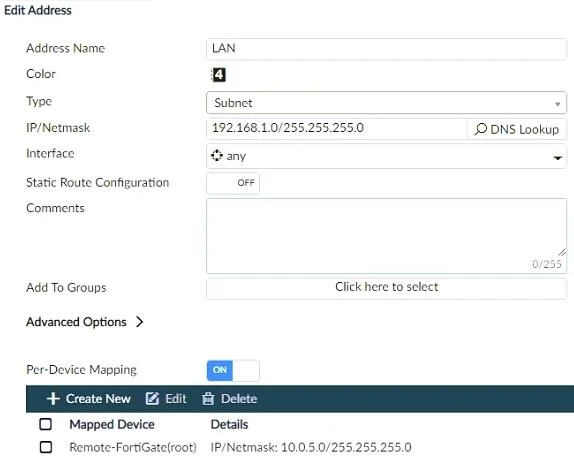

Exhibit
Options
- AThe FortiManager replaces the address object to none.
- B192.168.1.0/24
- C0.0.0.0/0
- D10.0.5.0/24
How the community answered
(28 responses)- A4% (1)
- B79% (22)
- C7% (2)
- D11% (3)
Explanation
In the example shown on this slide, the dynamic address object LocalLan refers to the internal network address of the managed firewalls. The object has a default value of 192.168.1.0/24. The mapping rules are defined per device. For Remote-FortiGate, the address object LocalLan refers to 10.10.11.0/24, whereas for Local-FortiGate the same object refers to 10.10.10.0/24. The devices in the ADOM that do not have dynamic mapping for LocalLan have a default value of In the exibit, the address objetc LAN has a default IP/mask 192.168.1.0/24. So, that's de value it will show bu default. Option D is wrong because 10.0.5.0/24 is the custom network address configured in "Remote- Fortigate" and it's imported as a dynamic mapping.
