NSE4_FGT-6.4 · Question #96
Examine the network diagram shown in the exhibit, and then answer the following question: A firewall administrator must configure equal cost multipath (ECMP) routing on FGT1 to ensure both port1 and…
The correct answer is C. 172.20.2.0/24 (1/150) via 10.10.3.2, port3 [10/0] D. 172.20.2.0/24 (1/150) via 10.30.3.2, port3 [10/0]. See the full explanation below for the reasoning.
Question

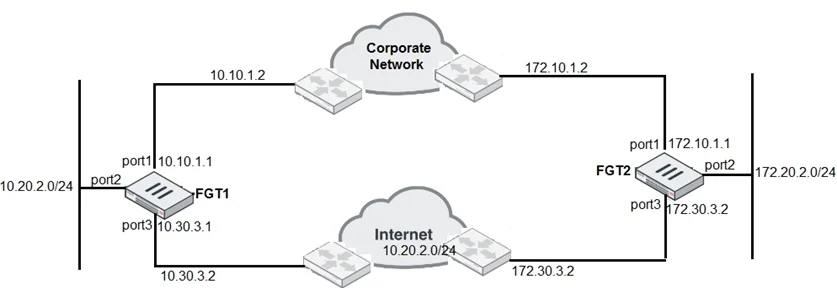

Examine the network diagram shown in the exhibit, and then answer the following question:
A firewall administrator must configure equal cost multipath (ECMP) routing on FGT1 to ensure both port1 and port3 links are used at the same time for all traffic destined for 172.20.2.0/24. Which of the following static routes will satisfy this requirement on FGT1? (Choose two.)
Exhibit
Options
- A172.20.2.0/24 (1/0) via 10.10.1.2, port1 [0/0]
- B172.20.2.0/24 (25/0) via 10.10.3.2, port3 [5/0]
- C172.20.2.0/24 (1/150) via 10.10.3.2, port3 [10/0]
- D172.20.2.0/24 (1/150) via 10.30.3.2, port3 [10/0]
How the community answered
(34 responses)- A15% (5)
- B9% (3)
- C76% (26)
Community Discussion
No community discussion yet for this question.
