NS0-520 · Question #61
Click the Exhibit button. A 4-node cluster was expanded with two news nodes (Nodes 5 and 6). You are now attempting to set up four FC LUNs on the two new nodes that use the ps2 igroup name, although…
The correct answer is C. The portset must be configured to reflect Nodes 5 and 6. See the full explanation below for the reasoning.
Question
Click the Exhibit button. A 4-node cluster was expanded with two news nodes (Nodes 5 and 6). You are now attempting to set up four FC LUNs on the two new nodes that use the ps2 igroup name, although FC ping works. LUNs on the previous four nodes are discoverable, but the four new LUNs on the new controllers are not discoverable. Referring to the exhibit, what is the problem?

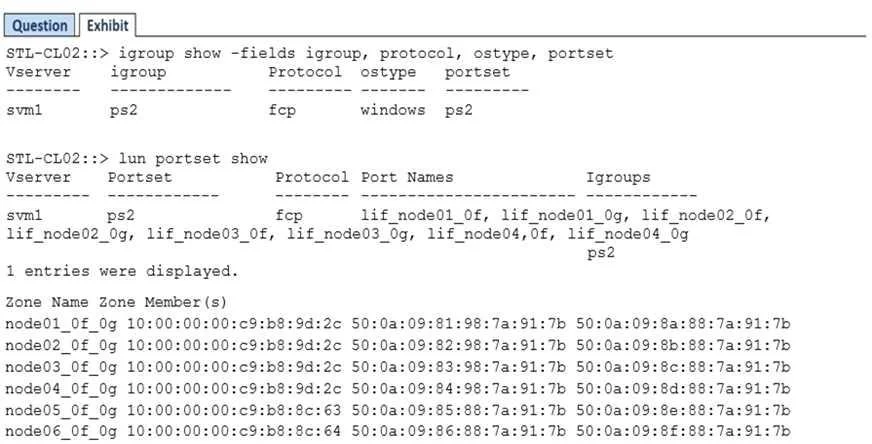

Exhibit
Options
- AThe zones between the hosts and LIFs are from node-05 and node-06.
- BSelective LUN Mapping (SLM) is not configured for this HA pair.
- CThe portset must be configured to reflect Nodes 5 and 6.
- DIgroup ps2 has the portset configured with the LIFs.
How the community answered
(39 responses)- A15% (6)
- B3% (1)
- C74% (29)
- D8% (3)
Community Discussion
No community discussion yet for this question.
