What is the maximum distance between a standard clustered pair at 2Gbps?

The correct answer is D. 500 meters. https://communities.netapp.com/servlet/JiveServlet/previewBody/4803-102-1-6405/tr-3548.pdf The maximum cable length supported for 2Gbps is 500m, the same as the max cable length between a NetApp storage system and a FC switch. Stretch MetroCluster (sometimes referred to as…

7-Mode Storage System Deployment

Question

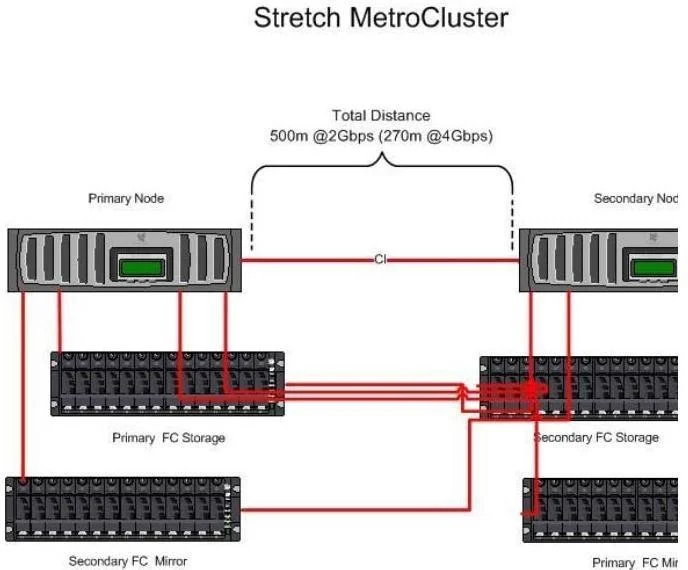

Exhibit

Options

A10 meters
B50 meters
C100 meters
D500 meters

How the community answered

(18 responses)

A
6% (1)
B
11% (2)
C
6% (1)
D
78% (14)

Explanation

https://communities.netapp.com/servlet/JiveServlet/previewBody/4803-102-1-6405/tr-3548.pdf The maximum cable length supported for 2Gbps is 500m, the same as the max cable length between a NetApp storage system and a FC switch. Stretch MetroCluster (sometimes referred to as nonswitched) is simply an active-active configuration that can extend up to 500m depending on speed and cable type. It also includes synchronous mirroring (SyncMirror® and the ability to do a site failover with a single command. See Figure 2. Additional resiliency can be provided through the use of multipathing.

Topics

#cluster interconnect#maximum distance#2Gbps#hardware specifications

Community Discussion

No community discussion yet for this question.
