Please refer to the attached exhibit. Which of the following types of configuration management documentation is represented?

Question

Exhibit

Options

• ANetwork security policy
• BNetwork baseline
• CLogical network diagram
• DWiring schematic

• B
  2% (1)
• C
  94% (47)
• D
  4% (2)

Explanation

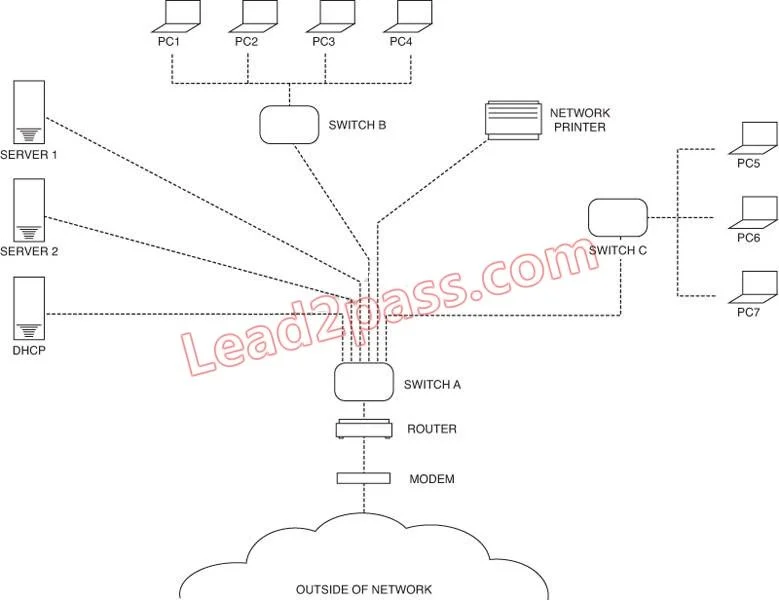

A logical network diagram shows how data flows through a network - depicting devices, IP addressing schemes, VLANs, routing domains, and logical relationships between components - without necessarily showing the physical layout or cable runs. This is a key piece of configuration management documentation. A network security policy (A) is a written document defining rules and procedures for network security. A network baseline (B) is a performance benchmark of normal network behavior over time. A wiring schematic (D), also called a physical network diagram, shows the actual physical layout, cable paths, port locations, and physical connections between devices.
