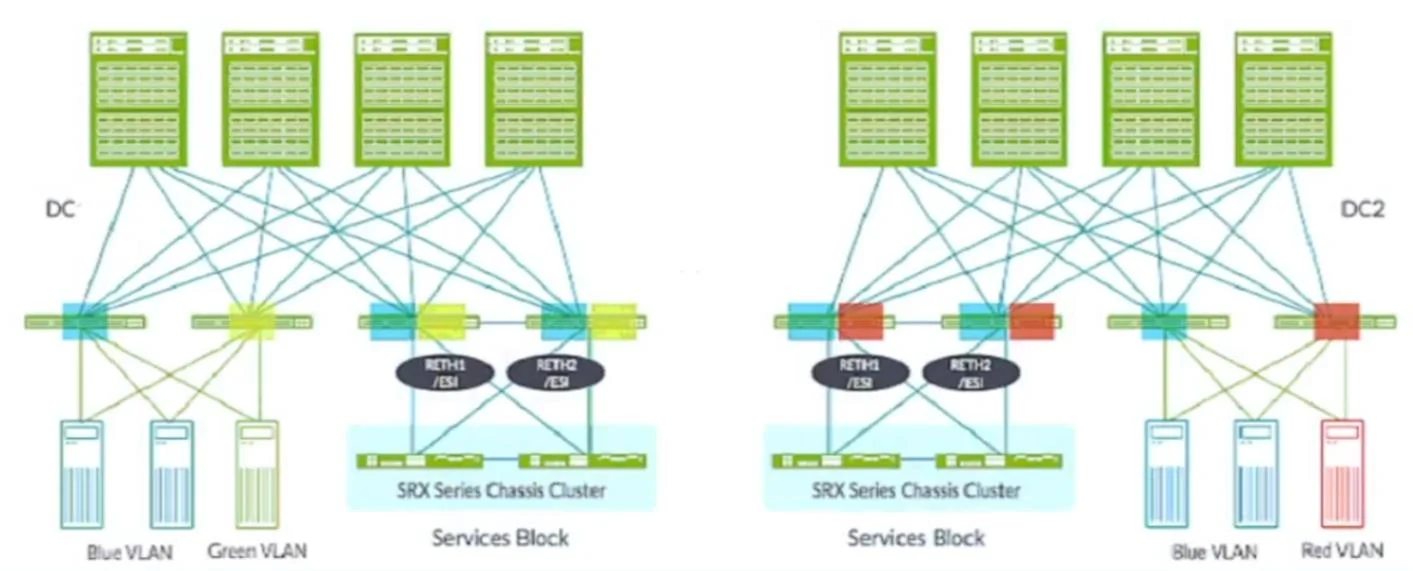

Click the Exhibit button. Both DC and DC2 are using EVPN-VXLAN technology deployed using an ERB architecture. A server on the Red VLAN must communicate with a server on the Green VLAN. The Blue VLAN…

Question

Exhibit

Options

• AThe eight spine devices must be configured as border spine devices; a full mush interconnect
• BAn interconnect is required between the four SRX Series devices; the Blue VLAN must be
• CAn interconnect is required between four leaf devices in the services blocks; the Red VLAN and
• DA lean super spine device must be added to DC and DC2; all VLANs must be stretched to the

• A
  8% (4)
• B
  84% (41)
• C
  2% (1)
• D
  6% (3)

Explanation

In an EVPN-VXLAN ERB (Edge Routed Bridging) architecture, Layer 2 VLANs can be stretched across data centers using VXLAN, while Layer 3 communication between different VLANs requires routing at the edge. Since the Blue VLAN must remain the same across DC and DC2, it must be stretched using VXLAN. However, inter-VLAN communication (between the Red and Green VLANs) requires Layer 3 routing, which is typically handled by a services block, such as the SRX Series chassis cluster shown in the diagram. To enable inter-VLAN communication, a transit VNI (VXLAN Network Identifier) must be introduced, allowing the Red and Green VLANs to communicate across the two data centers. The interconnect between the SRX Series devices ensures that Layer 3 routing can be performed while maintaining VXLAN encapsulation between the two sites.
