JN0-680 · Question #55
Referring to the exhibit, R1 and R2 are QFX5100s and are acting as VXLAN Layer 2 Gateways for VLAN 100 using PIM-SIM signaling. R1 currently has an entry for Host B in its MAC table. What will R1 do…
The correct answer is B. R1 will send a VXLAN packet over the RP-based multicast tree. See the full explanation below for the reasoning.
Question
Referring to the exhibit, R1 and R2 are QFX5100s and are acting as VXLAN Layer 2 Gateways for VLAN 100 using PIM-SIM signaling. R1 currently has an entry for Host B in its MAC table. What will R1 do in response to receiving the ARP packet from Host A?

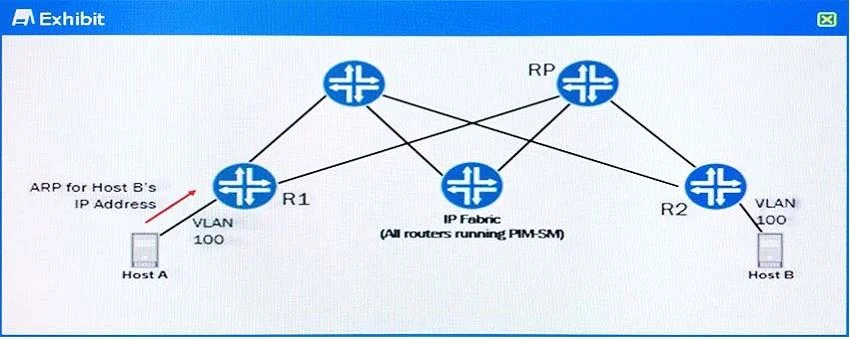

Exhibit
Options
- AR1 will send a VXLAN packet over the (S,G) tree built to R2.
- BR1 will send a VXLAN packet over the RP-based multicast tree.
- CR1 will send an (S,G) PIM Join message to R2.
- DR1 will send a (*.G) PIM Join message to the RP.
How the community answered
(33 responses)- A3% (1)
- B73% (24)
- C18% (6)
- D6% (2)
Community Discussion
No community discussion yet for this question.
