JN0-680 · Question #3
Referring to the exhibit, PE1 and PE2 are acting as MPLS Layer 3 VPN PEs to provide the DCI between DC1 and DC2, which are IP Fabrics. Leaf 1 and Leaf 2 are QFX5100 Series devices acting as VXLAN…
The correct answer is D. Edge1's routing table must contain an IP route to both Leaf1 and Leaf2. See the full explanation below for the reasoning.
Question
Referring to the exhibit, PE1 and PE2 are acting as MPLS Layer 3 VPN PEs to provide the DCI between DC1 and DC2, which are IP Fabrics. Leaf 1 and Leaf 2 are QFX5100 Series devices acting as VXLAN Layer 2 Gateways using EVPN signaling for the same VXLAN segment. Which statement is correct about the Edge1 device in this scenario?

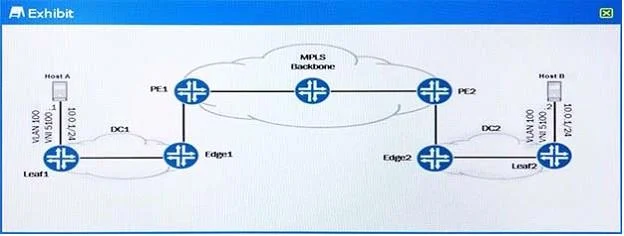

Exhibit
Options
- AEdge1 must be configured for MP-BGP using EVPN signaling.
- BEdge1 must be configured for MP-BGP using L3VPN signaling.
- CEdge1 must be configured for BGP labeled unicast on its PE1-facing interface.
- DEdge1's routing table must contain an IP route to both Leaf1 and Leaf2.
How the community answered
(26 responses)- A4% (1)
- B12% (3)
- C4% (1)
- D81% (21)
Community Discussion
No community discussion yet for this question.
