JN0-610 · Question #57
Exhibit. Your orchestrator has deployed three virtual machines on the compute nodes and deployed a VNF as shown in the exhibit. You request that a service chain be established so that traffic from…
The correct answer is A. H-1, H-2, H-3, H-4 compute nodes only. See the full explanation below for the reasoning.
Question
Exhibit. Your orchestrator has deployed three virtual machines on the compute nodes and deployed a VNF as shown in the exhibit. You request that a service chain be established so that traffic from VM-1 to VM- 2 is steered through VNF-1. Because of a connectivity problem, you must now verify that the necessary routes are present in the routing tables on the required nodes. In this scenario, which nodes should you inspect?

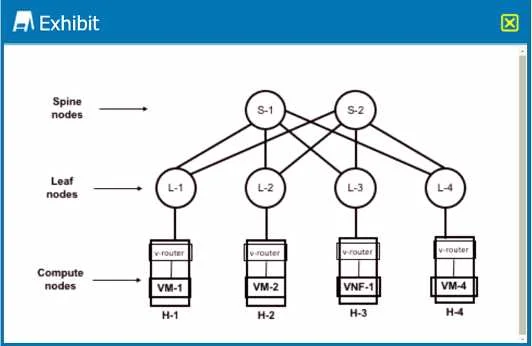

Exhibit
Options
- AH-1, H-2, H-3, H-4 compute nodes only
- Bthe spine and leaf nodes only
- CH-1, H-2, H-3 compute nodes only
- DH-1 and H-2 compute nodes only
How the community answered
(31 responses)- A84% (26)
- B10% (3)
- C3% (1)
- D3% (1)
Community Discussion
No community discussion yet for this question.
