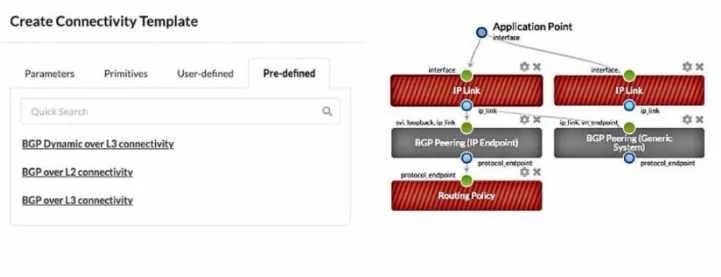

Referring to the exhibit, which statement is correct?

Question

Exhibit

Options

• AThe gray-solid primitives indicate further configuration is requited.
• BThe gray-solid primitives indicate that they ate incompatible with the connectivity template design.
• CThe red-striped primitives indicate that they are incompatible with the connectivity template design.
• DThe red-striped primitives indicate that further configuration is required.

• A
  9% (6)
• B
  13% (9)
• C
  4% (3)
• D
  74% (52)

Explanation

A connectivity template is a set of configuration parameters that can be applied to a device or a group of devices in a blueprint. A blueprint is a logical representation of the network design and intent. A primitive is a basic unit of configuration that can be added to a connectivity template. A primitive can be a link, a peering, a policy, or a service. In the exhibit, the red-striped primitives indicate that further configuration is required for them to be compatible with the connectivity template design. The red stripes mean that the primitive is incomplete or invalid, and it needs to be edited or deleted. For example, the IP Link primitive needs to have the interface name and IP address specified for each end of the link.
