Referring to the exhibit, what is the minimum number of LSPs required to support all four networks?

The correct answer is A. 1. Given the RSVP Signaled Service Provider MPLS Core network shown in the exhibit, only a single Label Switched Path (LSP) is required to support all four networks because MPLS can use label stacking to multiplex multiple LSPs over a single physical path. Therefore, one LSP can…

MPLS

Question

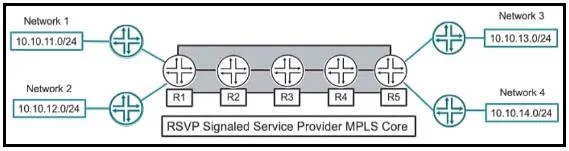

Exhibit

Options

How the community answered

(50 responses)

A
84% (42)
B
4% (2)
C
2% (1)
D
10% (5)

Explanation

Given the RSVP Signaled Service Provider MPLS Core network shown in the exhibit, only a single Label Switched Path (LSP) is required to support all four networks because MPLS can use label stacking to multiplex multiple LSPs over a single physical path. Therefore, one LSP can be established through the MPLS core, and all networks can use this LSP with different label stacks.

Topics

#LSP#MPLS#traffic engineering#LSP calculation

Community Discussion

No community discussion yet for this question.
