JN0-362 · Question #178
Click the Exhibit. On an MX Series device, you must enable routing between VLANs 100,200, and the Internet ge-5/1/0, and ge-5/1/2 are bundled into interface ae3. Ge-5/1/4, and ge-5/1/5 are bundles…
The correct answer is C. interfaces {xe-2/1/0 {unit 0 {family inet {address 10.0.10.2/24;}}}irb {unit 0{family inet {address 10.0.1.2/24:}}unit 1 {family inet {address 10.0.2.2/24;}}}}bridge-. Explanation/Reference:
Ethernet VPN (EVPN)
Question
Click the Exhibit. On an MX Series device, you must enable routing between VLANs 100,200, and the Internet ge-5/1/0, and ge-5/1/2 are bundled into interface ae3. Ge-5/1/4, and ge-5/1/5 are bundles into interface ae2. Both AE bundles trunk VLANs 100 and 200. In this scenario, what is the correct configuration snippet for VLAN 100?

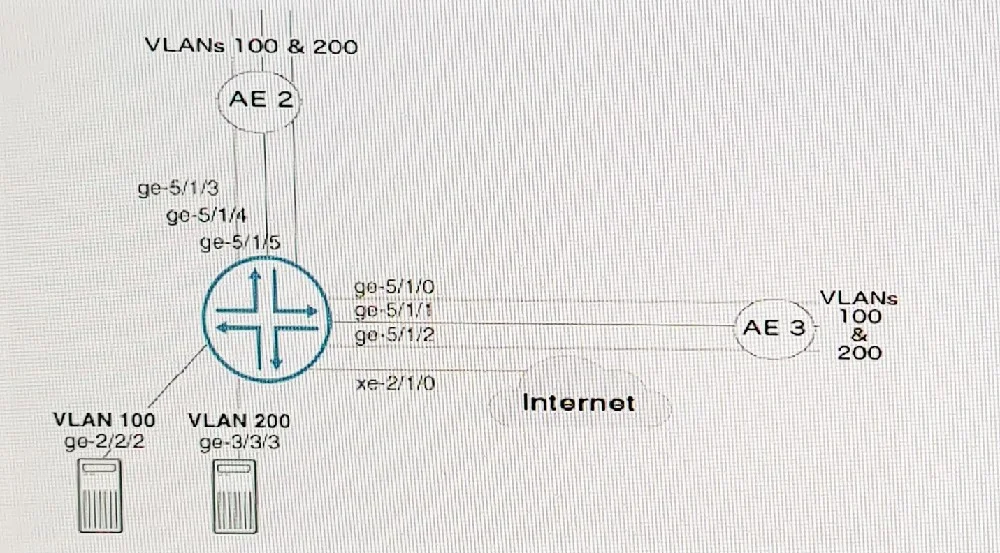

Exhibit
Options
- Ainterfaces {xe-2/1/0 {unit 0{family inter {address 10.0.10.2/24;}}}irb {unit 0{family inet {address 10.0.1.2/24;}}unit 1 family inet {address 10.0.2.2/24;}}}}bridge-
- Binterfaces {xe-2/1/0{unit 0{family inet {address 10.0.10.2/24;}}}ip-0/0/0{unit 0{family inet {address 10.0.1.2/24;}}unit 1{family inet {address 10.0.2.2/24;}}}}bridge-
- Cinterfaces {xe-2/1/0 {unit 0 {family inet {address 10.0.10.2/24;}}}irb {unit 0{family inet {address 10.0.1.2/24:}}unit 1 {family inet {address 10.0.2.2/24;}}}}bridge-
- Dinterfaces {xe-2/1/0 {unit 0{family inet {address 10.0.10.2/24;}}}ip-0/0/0 {unit 0 {family inet {address 10.0.1.2/24;}}unit 1 {family inet {address 10.0.2.2/24;}}}}
How the community answered
(38 responses)- A16% (6)
- B8% (3)
- C74% (28)
- D3% (1)
Explanation
Explanation/Reference:
Topics
#IRB#inter-VLAN routing#MX Series#bridge domains
Community Discussion
No community discussion yet for this question.
